Intelligent Hybrid Power Inverter 600W-1500W with LCD

Product Description

OFF Grid Hybrid Solar Power Inverter
ZYSW-TS 600-1500VA Key Features Smart Low Frequency OFF Grid Hybrid Solar Power Inverter 600VA-1500VA 3 in 1 design, Inverter +Grid Charger+PWM solar charge controller LCD Pure sine wave output with AVR Smart setup and simple operation by LCD Selectable Grid power priority or Solar Power priority Selectable charge voltage and current to extend battery life Selectable 145-270V or 100-290V grid input range Adjustable solar charge current, MAX 50A Auto transfer time 10 Ms, UPS design Smart Charging ,Off Charging function, Smart Cooling fan Comprehensive protection for overload, short-circuit, Battery Low and else Auto-restart and self-testing when AC resume, unattended operation USB Communication and Power Manager optional Technical Specifications

Model		ZYSW-600TS	ZYSW-800TS	ZYSW-1000TS	ZYSW-1500TS
Maximum Output Power(W)		600VA	800VA	1000VA	1500VA
		500W	640W	800W	1200W
Input	Voltage	UPS.mode:145-270±5(Vac)
		INV.mode:100-290±5(Vac)
	Frequency	45-65Hz
Output	Voltage (AC Mode)	UPS.mode:203-238±5(Vac)
		INV.mode:150-255±5(Vac)
	Voltage (Battery Mode)	220±10(Vac)
	Frequency	50Hz ±0.5Hz (DC mode)
Output Waveform		Pure sine wave
General Protection		Output Short; Over Voltage; Low-Voltage; Power Utility Short; Low Battery Voltage
DC Voltage		12VDC	12VDC	12VDC	12/24VDC
Charge Current		10A/20A for selection
Battery	Battery Type	GEL, lead-acid , Open lead-acid battery
	600-1200	12VDC External	12VDC External	12VDC External	12/24VDC External
Grid Charge Current		10A/20A for selection
Solar Charge Controler		Max 50A ( adjustable)
Transfer Time(ms)		Max 10MS
Overload		< 150% overload:No beed, > 150% overload :1beep per second
Alarm		battery low,LCD type beeping every 0.5second, when overload:UPS beep every 0.5second
Communication Interface		USB communication option.
LCD Display		I/P O/p vac hz, bat % , load %, input range / battery type /charge current/ grid or bat priority selections, solar charge vdc amp , fault , over temp
Product Size	WxDxH (mm)	290×307×123	290×307×123	290×307×123	290×307×123
Operating Temperature		0~40ºC
Humidity		10%~90% no condensing
CTN size	WxDxH (mm)	355*380*233	355*380*233	355*380*233	355*380*233
CTN Weight (Gross/Net) (KG)		8/7.3	11.01/10.3	11.65/10.9	13.66/13

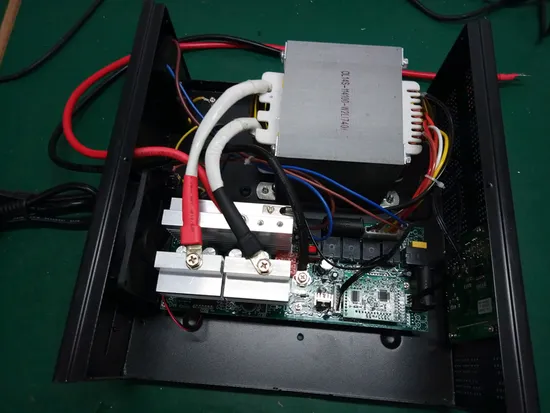

Product Display
