Concrete Mixer Machine Truck with Automatic Weighing System
| US$13,800.00-14,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1.2cbm
Type
Concrete Mixing Truck
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
10cbm/H
Feeding Height
2500mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White and Green
Actual Mixing Capacity
1.2cbm
Rotary Drum Capacity
1.4cbm
Slump of Concrete
70-260mm
Tank Capacity
540L
Reducer Ratio
01:10
Rated Power
58kw
Max Torque
255/1500-1800 380/1500-1800 N.M/R/Min
Max Running Speed
24km/H
Min Steering Radius
5000mm
Climbing Capacity
26
Tire
23.5/70-16
Driving Way
4×4
Weight
4580kg
Maximum Load Capacity
2800kg
Whole Machinery Weight
7380kg
Transport Package
Nude Package
Specification
6100*1850*3000mm
Trademark
HW
Origin
China
HS Code
8705400000
Production Capacity
300sets/Month
Product Description

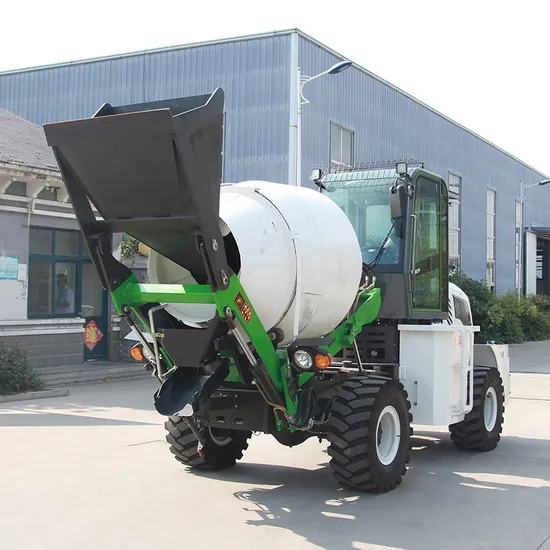

concrete mixer machine truck with automatic weighing systemHWJB120 self loading mobile cement concrete mixer truck is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful Yunnei Diesel engine and 4 wheel drive , the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement. aggregate, stone.
Technical Parameter
| Specifications | Unit | Parameter |
| Model | / | HWJB120 |
| Actual mixing capacity | m³ | 1.2 |
| Rotary drum capacity | m³ | 1.4 |
| Degree of bias | ° | 16 |
| Rotational speed | r/min | 0-14 |
| Direction of rotation | | Feed:clockwise output:counter clockwise |
| Mixing drum blade | | Two sets of spiral blades and four sets of auxiliary blades |
| Slump of concrete | mm | 70-260 |
| Hydraulic Power Transmission System | ||
| Pump model | | CBGV-4025 |
| Hydraulic motor model | | BMSS-250 |
| Reducer ratio | | 01:10 |
| Water Supply | ||
| Tank capacity/ water supply form | L | 540/ automatic timing water supply mechanism with automatic timing |
| The main performance parameters of the chassis and the engine | ||
| Engine type / displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| model | | Straight injection type four-stroke water-cooled supercharged diesel engine |
| Rated power | kw/r/min | 58KW/2400 |
| Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| Max running speed | km/h | 24 |
| Min steering radius | mm | 5000 |
| Climbing capacity | % | 26 |
| Tire | | 23.5/70-16 |
| Driving way | | 4×4 |
| Weight | kg | 4580 |
| Maximum load capacity | kg | 2800 |
| Whole machinery weight | kg | 7380 |
| Overall size(L*W*H) | mm | 6100*1850*3000 |
Self loading mobile concrete cement mixer truck 1.2cbm product details:
The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance
Main Feature :
* Italy Leading Design,Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output,Save Time And Labor,Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car
* 180 Degrees With A Rotary Stirring Tank,Two-Way Unloading
Packing & Shipping :
Note : 1 unit HWJB200 is in one 40 ft Container .
Application:
