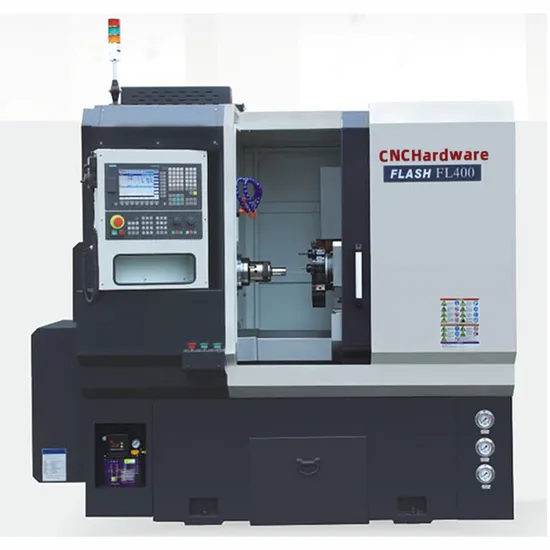

CNC Lathe Turning Machine High Speed Spindles 8 Stations FL400
| US$18,000.00-28,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FL400
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Pallet
Origin
China
HS Code
8458110090
Production Capacity
10 Units Per Month
Product Description
FL400 CNC Tools Machine 3-Jew Chucks Gang Type Toolings High Spped Spindles 8-Stations TurretStandard Features
Manual 3-Jaw Chuck (FL400+) Pneumatic Collet (FL280, FL300) Gang Type Tooling (For Swing < 400mm) 4-Station Tool Post + Gang Plate (For Swing > 400mm) Ergonomic Operator Panel Design Automatic Lubrication System Automatic Coolant System Built-In Safety Features
Optional Features
Updated Chucks Updated Spring Collets Updated Control Systems Live Tooling Bar Feeder 8-Station Turret (Available on FL300/ FL400/ FL500/ FL550/ FL630) Specifications
| Unit | FL400 | |||
| Capacity | Chuck/collet Bed type/ guideway Max. swing dia. Over bed Max. length of workpiece Max. swing dia. Over slide | type mm mm mm | Manual chuck 8" *Hydraulic chuck 8", *6" Flat/LM Φ400 320 Φ180 | |
| Spindle | Spindle bore Max. dia. Of through hole Spindle nose Spindle speed Spindle motor power | mm | Φ62 | Φ48 |
| mm | Φ52 | Φ40 | ||
| A2-6 | A2-5 | |||
| rpm | 2000 | 3000 | ||
| *3500 | *4500 | |||
| KW | 5.5/7/5 | |||
| Axis | X/Z travel | mm | 380/350 | |
| X/Z rapid traverse | mm/min | 20/20 | ||
| Tool Post | Type | 4-station toolpost | ||
| *8-station turret | ||||
| *Gang type tooling | ||||
| No. of tool stations | No. | 4-10 | ||
| Others | Power capacity | kVA | 11 | |
| Dimensions (LxWxH) | mm | 1950x1250x1620 | ||
| Weight (about) | Kg | 2000 | ||
| Note: *means optional | ||||
