High-Performance Vertical Milling Machine for Efficient Metal Milling

Product Description

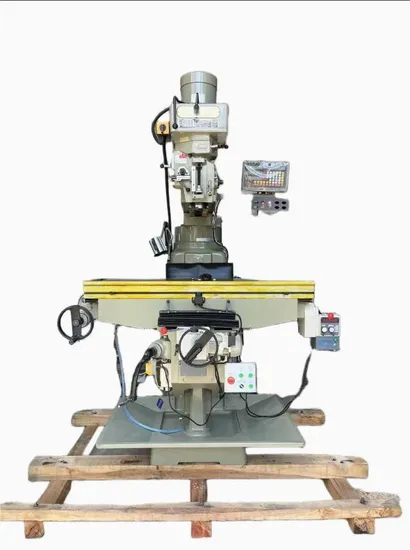

4s Vertical Lifting Table Milling Machine - High-Precision Metal Milling Marvel Made in Taiwan
Product Description
Mechanical CharacteristicsCrafted from premium Meehanna cast iron, our machine boasts superior rigidity, outstanding stability, and resistance to deformation, ensuring a robust performance every time.The spindle is integrated with a precision bearing combination, delivering powerful cutting force and remarkable accuracy for impeccable results.Featuring a distinctive inverted hanging design, the end milling head provides precise operations, user-friendly handling, and easy braking. (Optional specialty features available for customer selection)Three-axis screw nuts, made from advanced phosphorus meter copper, offer excellent wear resistance and an extended service life.XY shaft slides receive high-frequency treatment for enhanced resistance to tail wear, significantly boosting their longevity.A sophisticated lubrication system is included to ensure flawless slide movements.
Product Parameters
1.Milling Machine Rotation Speed
The rotation speed of our milling machine is crucial for optimizing processing efficiency and cutting force. Generally, a higher speed enhances the cutter's cutting ability and improves the surface finish of components while minimizing residual surface stress.
Milling Machine Cutting Speed The cutting speed significantly influences processing speed and quality. Balancing speed is critical to achieve desired outcomes, considering material hardness, cutter composition, and machine type for optimal results. Milling Machine Processing Accuracy Our milling machine excels in machining precision, a vital performance indicator. It influences machining quality and part stability, shaped by cutting force, machine and tool rigidity, workpiece clamping accuracy, and initial machine errors. Milling Machine Precision Stability Precision stability maintains accuracy during operations. Inadequate stability heightens machining errors, compromising quality. Stability is affected by machine initial errors, thermal deformation, and tool wear.

Product Name
Product Name	Milling machine
Product model	4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	720MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	320MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-490MM
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	180° around / 45° front and back
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1

Detailed Photos
Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.
