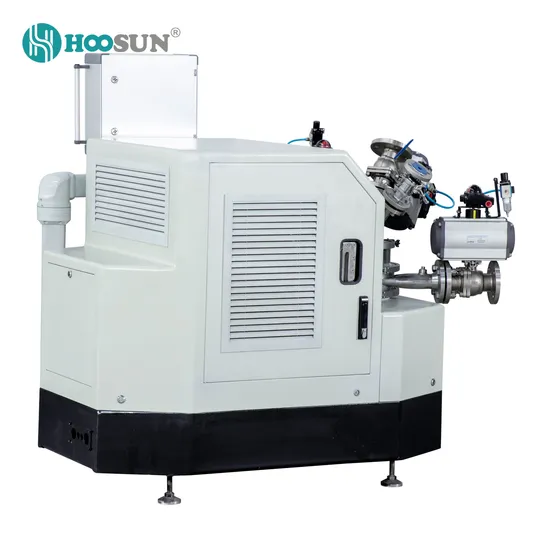

CE Approved Corrosion Resistant High Speed Mixer Paint Disperser for Mixing Paint, Coating, Ink, Pigment

Product Description

Product Description: Inline Dispersing and Mixing Equipment IMS4
Product Description: The IMS4 Continuous Dispersing and Mixing Equipment is designed for efficient and precise mixing of liquids with suspended solids, powders, viscous fluids, and granules. This advanced mixer is ideal for various industries, including chemical, paint production, coatings, dyes, pigments, and graphite.
Application Areas:
Micro and nano materials Ceramic materials Battery homogenization Conductive materials Digital inkjet Coatings and inks Key Features and Benefits:
High Efficiency: The IMS4 provides high-speed mixing and dispersion, achieving uniform particle distribution and material homogeneity. Versatility: Suitable for a wide range of materials and processes, from chemical industries to digital printing. Energy Efficiency: Advanced vacuum dispersion technology reduces energy consumption by more than 70%, leading to significant savings. Automation and Ease of Use: Easily integrates into automated systems, ensuring stable and reliable operation with minimal operator involvement. Durability and Reliability: Constructed with high-quality materials, ensuring long service life and stable operation. Technical Specifications:
Power (kW): 45-90 Maximum Rotation Speed (rpm): 3000 Processing Volume (L): 8000-15000 Powder Suction Speed (kg/min): 10-30 Maximum Viscosity (mPa.s): 100000 Liquid Flow Rate (m³/h): >80 Suspension Flow Rate (m³/h): 40-60 Unique Technologies:
Special stator-rotor design ensures high-speed shear slurry and uniform particle distribution. Vacuum powder suction without loss and closed chamber to prevent leaks and contamination. Savings and Efficiency:
Energy-saving technologies reduce production and operational costs. High dispersion efficiency ensures superior product quality. After-Sales Service:
Professional installation and commissioning. Lifetime technical support and maintenance. Conclusion: The IMS 5 is a reliable and highly efficient solution for mixing and dispersion in various industries. Its advanced technologies, energy efficiency, and ease of use make it an indispensable tool for your production needs. Contact us for more information and to place an order!
Technical Specifications Table for IMS Models:
Model Power (kW) Rotation Speed (rpm) Processing Volume (L) Powder Suction Speed (kg/min) Maximum Viscosity (mPa.s) Liquid Flow Rate (m³/h) Suspension Flow Rate (m³/h)

IMS1	3	8000	20-500	1-4	60	10-20	2-4
IMS2	3-7.5	6000	100-200	4-12	100	15-30	5-10
IMS3	11-18.5	4000	200-1500	6-20	200	20-30	10-20
IMS4	22-37	3000	1500-8000	3-10	100000	30-50	30-50
IMS5	45-90	3000	8000-15000	10-30	100000	>80	40-60
IMS-Plus	75-110	1950	8000-15000	>100	100000	>100	50-80
IMS6	110-160	3000	15000-25000	1-5	300000	50-80	60-100
IMS7	200-250	3000	25000-40000	5-30	300000	60-100	60-100
