High Precision Small Mini Fiber Laser Cutting Machine for Sheet Metal Jewelry Glasses Machinery Equipment Lighting Watches Clocks Car Parts Craft Gifts

Product Description

Fortune Laser FL-P6060 600*600mm Metal Laser Cutter 1000W 1500W Small Size Precision Fiber Laser Cutting Machine

The price above is only for your reference. Prices can be different for different machine configurations, please contact us for the latest quotation.
FL-P Series precision laser cutting machine is designed and made by FORTUNE LASER. Adopted with leading laser technology for thin sheet metal application. The machine is combined with marble and Cypcut laser cutting system. With Integrated designing, dual gantry linear motor (or ball screw )driving system, friendly interface and long term stable working.
Machine Characters
Safety structure: Less occupation, good for small workshop;
Easy operation: The leading Cypcut cutting system, easy to use;
Anti-corrosion wear: Free maintenance of transmission parts, corrosive material cutting is available;
Stable and durable: Marble machine tool, less distortion, high stability, anti-shock while high speed working;
Precision cutting: Precision cutting comes from Raytools/OSPRI/WSX laser cutting head;
Fiber Laser: Adopted with top brand fiber lasers China made with good quality and stability;
Precision motion mechanism: High quality driving system can improve cutting accuracy and efficiency.

Machine configuration
Model	Precision Fiber Laser Cutting Machine FL-P Series
Working Area	600mm*600mm
Laser source	1000W-6000W
CNC Cutting System	Cypcut operating system
Laser head	OSPRI/Raytools/WSX/PRECITEC
Machine bed	Fortune Laser
X/Y axis gear rack	Fortune Laser
Precision linear guide	HIWIN
Motor Drive	Yaskawa Servo motor
Electronic components	France Schnei -der/ CHINT
Reducer system	PHILANDE
Pneumatic components	Japan SMC
Machine bed accessories	Fortune Laser
Water chiller	Hanli
Waste recycling equipment	Fortune Laser

Note: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details.


Machine Parameters

Model	FL-P5050	FL-P6060	FL-P1390
Working Area (L*W)	500*500mm	600*600mm	1300*900mm
X/Y Axis Position Accuracy	±0.03mm/1000mm	±0.03mm/1000mm	±0.03mm/1000mm
X/Y Axis Repeat Position Accuracy	±0.02mm	±0.02mm	±0.02mm
Max Moving Speed	80000mm/min	80000mm/min	80000mm/min
Max Acceleration	1.0g	1.0g	1.0g
Power Supply	AC380V/50Hz	AC380V/50Hz	AC380V/50Hz
Laser Source Power(Optional)	1kW/1.5kW/2kW/3kW/4kW/6kW

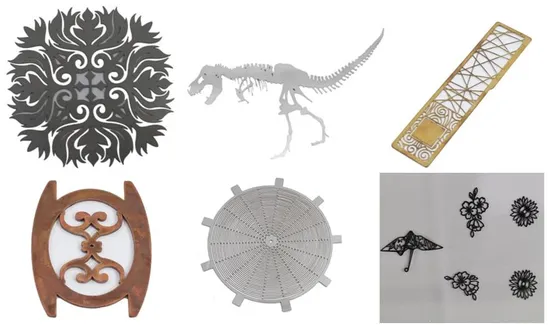

Applications
Suitable for processing metal sheets such as stainless steel, carbon steel, alloy steel, silicon steel, galvanized steel plate, nickel-titanium alloy, inconel, titanium alloy, etc.
