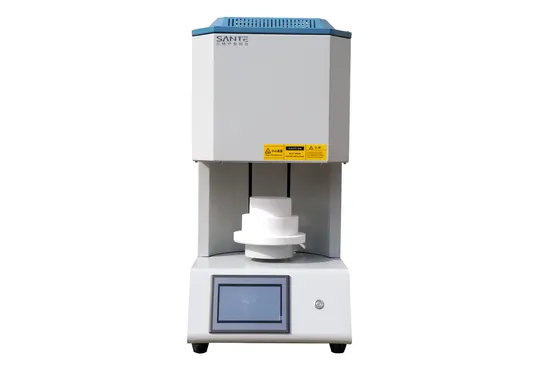

1700c Fully Automatic High Temperature Zirconia Sintering Dental Furnace Programmable

Product Description

Dental Lab ceramic Burnout furnace is mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality MoSi2 rods are used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements. Product Features 1. The Zirconia Ceramic muffle furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality MoSi2 rod
4.High temperature control accuracy, small temperature compensation and temperature accuracy ± 1 ° C
5. Using touchscreen PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 480 segments
6. Electronic components are used products, with leakage protection, safe and reliable
7. The Zirconia furnace will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
8. When Zirconia Ceramic muffle furnace program is set, just press the run button and the next work will be completed automatically
9. Optional large-screen paperless recorder or RS232 communication interface for real-time recording of temperature rise curves, with memory card for analysis and printing of experimental data.

Model No.	STY-120-17	STY-150-17	STY-200-17
Chamber size	φ120xH120mm	φ150xH150mm	φ200xH200mm
Power supply	220V/3KW	220V/4KW	220V/6KW
Max. temperature	1700c
Continuous tempertature	1600c
Heating rate	≤10ºC/min
Standard Accessories	One pair of high temperature furnace gloves one pair of crucible tongs thermal gloves operational book
Optional devices	Alumina crucible

Detailed Photos
Standard Package

Item Description	Qutity	Image
tube furnace	1 set
quartz tube OD80xL1200mm	1 pc
Vacuum flange	1 pair
Type N thermocouple	1 pc
ceramic plug	2 pcs
Stainless steel tongs	1 pair
Thermal gloves	1 pair
Furnace operation manual & temperature controller manual	1 pc

Certifications
Packaging & Shipping Standard Export Safe Packing:
1.The furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks

Delivery Time: 15 working days against receiving advanced payment
Port: Shanghai/Qingdao
Company Profile Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan, China Free Trade Zone. Sante is one of the leading electric heat furnace manufacturers in China. The company designs, manufacturers and sells kinds of electric resistance furnaces and provides the professional solutions for customers in lab and heat industry. Sante has delivered its furnaces to more than 78 countries and the team is fully dedicated to working for their beloved career.

SANTE products cover 1000ºC~1800ºC Muffle furnace, Tube furnace, Vacuum furnace, Dental furnace, Industrial furnace, elevator furnace, car bottom furnace, degreasing furnace, heardening furnace, annealing furnace, pusher furnace, shutterpottery kiln and so on

Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment muffle furnace and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
