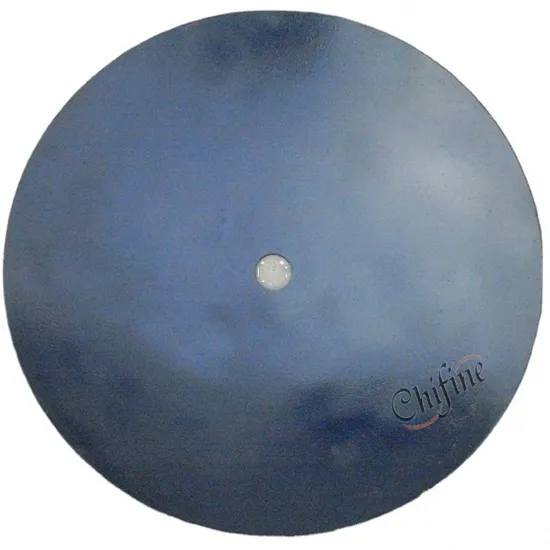

Agricultural Cultivator Parts Plough Disc Harrow Blade

Product Description

A harrow disc is a harrow whose cutting edges are a row of concave metal discs, which may be scalloped, set at an oblique angle. It is an agricultural implement that is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders.
Main manufacturing process:
• Cutting materials
• Heat treatment
• Pressure type
• Quenching
• Tempering
• Baking varnish
Qingdao Chifine Machinery Co.,Ltd is one famous company in China which specialized in various metal casting and machining products with over 20 years experience located in Qingdao China.It covers a comprehensive range of casting and machining part and was widely used in Agriculture machinery, Motor Vehicle, Architecture,Railway ,valve and pump industry ,Engineering,Mechanical Part, Mining Industries ,Marine ,petroleum machinery and so on.
There are six department in our company ,every department help and support each other .
Production Department
QC department
Technical department
Sales department
Financial department
Purchasing department
WHY CHOOSE US
Chifine has accumulated important and valuable experience in design, manufacturing and customer service over these years We will continue to integrate our technical superiority, improve process and quality to increase market share and create more brilliant future.
Professionally managed Casting foundry and metal maching workshop
Mould, casting, machining, surface integrated services
Flexibility for quantities - large / medium / small series - all can be produced.
Well qualified & experienced skilled staff.Rich experience on product development .
Consistent Quality.ISO9001 Certificated
Shorter lead time for mould and sample development.
Professional sales staff with rich experience and good communication skills.Quick responses to inquiries / RFQs.
Vision to grow with the customers & keep long term business relations.

Blades Model
14″×3mm	355mm×3mm	24″×6mm	610mm×6mm
16″×4mm	406mm×3mm	26″×5mm	660mm×5mm
18″×3mm	460mm×3mm	26″×6mm	660mm×6mm
18″×4mm	460mm×4mm	28″×6mm	710mm×6mm
20″×3mm	510mm×3mm	26″×7mm	660mm×7mm
20″×3.5mm	510mm×3.5mm	28″×7mm	710mm×7mm
20″×4mm	510mm×4mm	26″×8mm	660mm×8mm
20″×5mm	510mm×5mm	28″×8mm	710mm×8mm
22″×4mm	560mm×4mm	30″×8mm	760mm×8mm
22″×4.5mm	560mm×4.5mm	32″×8mm	810mm×8mm
22″×5mm	560mm×5mm	32″×9mm	810mm×9mm
22″×6mm	560mm×6mm	32″×10 mm	810mm×10mm
24″×4mm	610mm×4mm	36″×10 mm	910mm×10mm
24″×5mm	610mm×5mm	36″×12 mm	910mm×12mm

1	Item Name	Tractor Disc Plough for Farm Machine
2	Material	65Mn or Boron steel
3	Hardness	HRC38~44
4	Surface Treatment	Painting as the color you need
5	Outer Diameter	10"~30" inch
6	Thickness	3~12mm
7	Hole Shape	Squared, Round, Hexagon or based on your requirement
8	Feature	Long using life and the reasonable price
9	Advantages	Professional production team,excellent engineer,high quality productions
10	Use	Widely used for cultivator, farm implements
11	Certificate	ISO 9001:2008
12	Place of Origin	Shandong
13	Package	Carton and Pallet.It is available to supply colorful package according to your requirement.
