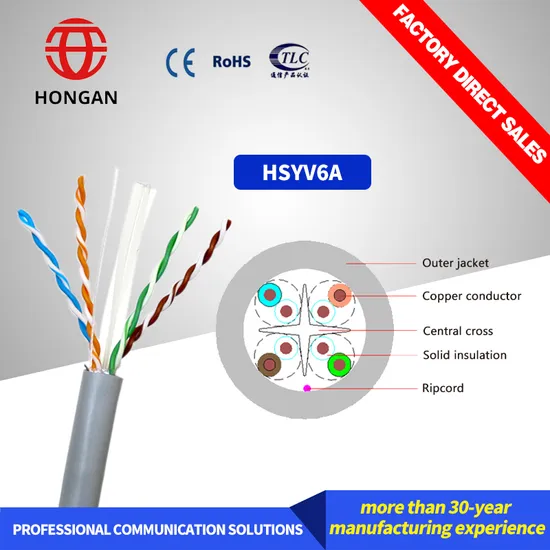

Gigabit Network Stable Fast Outdoor UTP/FTP/SFTP Cat 6A Cable Cat5e CAT6 Exterior

Product Description

Product Description:
- Characteristics of product:
1.More bandwidth excess than 250MHz standard required;
2.Comply with ROHS standard;
3.Support 10-Gigabit Ethernet network transmission requirement;
4.The products of special outer sheath or purpose can be designed according to customer's demands.
- Applications:
1.10 Base-T4
2.100 Base-TX
3.100 Base-VG-ANYLAN
4.155 Mbps ATM
5.622 Mbps ATM
6.1000 Base-T
7.1000 Base-TX
8.10G Base-T
-Material instruction:
1.Conductor:23AWG Copper;
2.Insulation:Solid HDPE or Skin-Foam-Skin PE;
3.Sheath:Environment Friendly PVC or Flame Resistance PE or Low Smoke Zero Halogen Polyolefin(LSZHP);
-Physical Electrical Characteristics:
1.D.C resistance(max):7.5Ω/100m at 20ºC;
2.Mutual capacitance(max):5.6nF/100m;
3,Dielectric strength between conductors(min):2.5kv/2s;
4.Impedance:1-250MHz 100+/-15Ω;
5.Differential phase delay(max):45ns/100m;
6.Installation temperature:-20ºC-+60ºC;
7.Permitted bend radius:Over 8 times diameter of the cable.

Transmission Performance
Frequency(MHz)	Attenuation(Max)(dB/100m)	Next(Min) (dB/100m)	Psnext(Min)(dB/100m)	Elfext(Min)(dB/100m)	PSELFEXT(Min)(dB/100m)	RL (Min)(dB)	Phase Velocity(Min)(m/s)	Phase delay(Max)(ns/100m)
4	3.8	66.3	63.3	56	53	23	0.604c	552
10	6.0	61	58	48	45	25	0.612c	545
16	7.6	58	55	44	41	25	0.614c	543
20	8.5	56	53	42	39	25	0.615c	542
31.25	10.7	53	50	38	35	23.6	0.617c	540
62.5	15.4	49	46	32	29	21.5	0.619c	539
100	19.1	45.3	42.3	28	25	20.1	0.620c	538
200	27.6	40.8	37.8	22	19	18	0.622c	537
250	31.1	39.3	36.3	20	17	17.3	0.622c	536

Advanced Production Line:
Certifications:
Company Information
This is HONGAN GROUP CORPORATION LIMITED. Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And also EPON , GPON, Data center Solutions and Equipments. Located in Shandong China.

Products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Supply products for China Mobile, China Unicom, China Telecom each year. And shipped to more than twenty countries.
Our Customers:
FAQ
-Q1:Are you a Factory or Trade Company?A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
