Installation Angle Bigger Than 30 Degrees Solar Cleaning Machine

Product Description

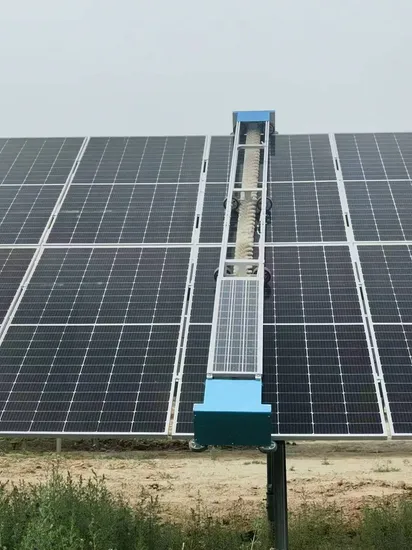

Solar Panel Cleaning Robot
Featuring a high-speed roller brush made of specially designed polymer materials, the robot rapidly removes dust and dirt from the surface of solar panels through advanced wheeled mobility. It cleans effectively without causing damage to the solar panels and is adaptable to various environments and terrains, making it suitable for large-scale cleaning of photovoltaic panels in areas such as rooftops and solar power stations.
Solar cleaning robot parameters

Product Model	ZTG-3310
Product Name	Remote control crawler photovoltaic cleaning robot
Standard Width	400 mm
Standard Height	215 mm
Length	customizable
Working condition	>30 degree
Power Mode	Lithium batteries,rechargeable photovoltaic panels
Rechargeable photovoltaic panel power	50W/24V
Battery Power	24V/10A
Time Required to Fill the Battery	4-5 hours
Design Lifetime	3-5 years
Motor Power	90 W
Brush Hardness	SHORE-A30
Controller	Industrial PC (self-developed)
Network Access	4G
Design Lifetime	6 years
Dry-brush Working Mode
Cleaning Speed	14m/min
Maximum one-way Distance	600 m
Working Temperature	-20 ~ 80ºC
Boot Mode	Automatically start on time
Ccontrol Mode	Automatic, manual, remote control
Control Platform	Remote service platform + mobile APP
Night Work	Support

Features of photovoltaic cleaning robot
Automatic Cleaning:
The robot can set cleaning modes through a remote control or mobile app, independently adjusting between dry or wet cleaning
modes, as well as the cleaning time and frequency.
Special Brush Cleaning:
Featuring a high-speed roller brush made of specially designed polymer materials, it quickly cleans the surface of solar panels
effectively without causing damage to the photovoltaic panels.
Intelligent Monitoring:
The robot is equipped with an intelligent monitoring system that allows for remote monitoring of the cleaning progress, including
real-time positioning and fault alarm functions. It also has edge sensing devices to prevent the machine from slipping off.
Why we need clean solar panels?
The dust accumulation of the module will reduce reduce the power generation of modules, easily damage pv modules, increase safety risks, and reduce its life.
Factory and certificate display
Packaging and shipping
Packaging details:
1. Outer packaging: standard sea export bakelite box;
2. Inner packaging: stretch film, moisture-proof plastic film;
3. Customized according to your requirements.

FAQ
1. Will the robot hit walls or obstacles during operation?
Answer: This will not happen under normal circumstances. Human operations will be controlled by humans. This requires the person using the robot to basically understand how to operate the robot. The fully automatic system will be controlled by induction and there will be no collision.
2. After the rooftop photovoltaic is installed, can it work on rainy days?
Answer: Fully automatic equipment can be operated in rainy days, but human-operated equipment cannot be cleaned in rainy days. It is mainly to protect people's safety and prevent lightning and other unsafe things from happening.
3. Which robots can be made into crawlers? Low cost?
Answer: Both are possible. The main purpose of the crawler tracks is that they have high cleaning friction and good cleaning effect.
4. How do we compare our equipment with our peers in a literal way? What are the advantages?
Answer: Efficient, durable, and reliable. The business needs to elaborate on these three points.
5. If leaves or other things fall on the photovoltaic panels, can it be seen by the amount of electricity generated?
Answer: Debris in a large area is fine. Under normal circumstances, photovoltaic panels have a system for monitoring power generation, which can be judged by changes in power generation. Debris in a small area may not necessarily be monitored.
6. Detailed working principle of cleaning robot.
Answer: Please see the instructions
7. Technical advantages.
Answer: It can be used for high-speed dry cleaning. Our dry cleaning efficiency is the highest and the cleanliness is the highest in the same industry.
