Top Quality Poultry Manure Separator/Solid-Liquid Separator for Cow/Pig/Chicken Manure

Product Description

Poultry Manure Separator/Solid-Liquid Separator
1,Introduction of Poultry Manure Separator/Solid-Liquid Separator
Thepig/cow/chicken dung separator is new produced by our company mainly dealing with the variety of livestock and poultry dung which is diluted in a certain proportion. The manure first is pumped into the extruder through a high rod submersible pump, then by spiral extrusion and filting screen, the solid and liquid substances are separated.
2, Consist of of the Poultry Manure Separator/Solid-Liquid Separator
the pig/cow/chicken dung separator is consist of the following main parts: spiral extruder, sieve, submersible pump, distribution cabinet, plastic pipe, reducer, motor, mixer and other equipments.
a, about submersible pump
the submersible pump also named dung transport pump, mainly used completed with the separator, also could be used in other fields such as the factory discharge waste water, city sewage treatment plant drainage system, sewage drainage station in the residential area, civil air defense system drainage station, discharge of sewage from hospitals and hotels, municipal engineering construction site, farmland irrigation in rural biogas pool, water supply device in a waterworks.
the advantages of the submersible pump
the special structure of the impeller owns strong discharge ability;
the mechanical seal adopts strong and wear protection titanizing tungsten material make the pump could perform safely more than 8000 hours;
the depth under the liquid could be 15 meters;
low noise, low cost and high efficiency.
b, about the submersible mixer
the submersible mixer is maily used to mixing the liquid and solid evenly to help the pump pumping, the compelte submersible mixer consist of a lifting device with 3-4meters long (which include the guide rail, the lifting arm, the pedestal, the steel wire rope, anchoring and hand hoist) and a 10 meters long wire cable
3, Features of the Poultry Manure Separator/Solid-Liquid Separator
1. extrusion spiral: double wing blade, stainless steel material, and after special processing, enhance wear and corrosion resistance.
2. filter screen: stainless steel, precision machining; according to customer material type, adopt different specifications of sieve mesh.
3. material discharge adjustment: according to the requirement of the dry and humidity of the solid material after extrusion, the two side weight blocks can be adjusted to achieve different dry and wet effects as well as different yield efficiency.
4,Function of the Poultry Manure Separator/Solid-Liquid Separator
The function of pig/cow/chicken dung separator is to separate chicken manure, cow manure and other livestock manure into liquid organic fertilizer and solid organic fertilizer. The liquid organic fertilizer can be used directly for the utilization and absorption of the crops. The solid organic fertilizer can be used in the area of the lack of fertilizer, and it can also improve the soil structure. At the same time, the organic compound fertilizer can be made into the organic compound fertilizer. The raw sludge water is sent to the machine by submersible pump. The solid material is extruded and separated through the spiral shaft placed in the screen, and the liquid flows through the sieve outlet.
5,Working principle of the Poultry Manure Separator/Solid-Liquid Separator
The original manure water is sent to the machine by subersible pump. The solid material is extruded and separated through the spiral shaft placed in the screen. The liquid just flows through the screen outlet from the liquid outlet.
6, Technical parameters of Poultry Manure Separator/Solid-Liquid Separator

model		power(kw)	reducer	speed(r/s)	voltage(V)	capacity(M3/H)
						cow dung	pig dung	chicken dung
separator	180	5.5	5-43	33.7	380	6-8	4-6	2-4
	260	7.5	6-43	33.7	380	8-10	6-8	5-7
pump		3.0		1450	380	lift distance 15-20m

7, Advantages of the Poultry Manure Separator/Solid-Liquid Separator
a,the contact materials is stainless steel which could be wear production and anti-corrosion.
b, the size of the sieve could be aujustable by the real condition.
c, the humidity also could be adjustable by using the counter weight alongside
d, this machine is 2 times long life compared to the same other products
e, small footprint, easy operation and low cost and less maintance

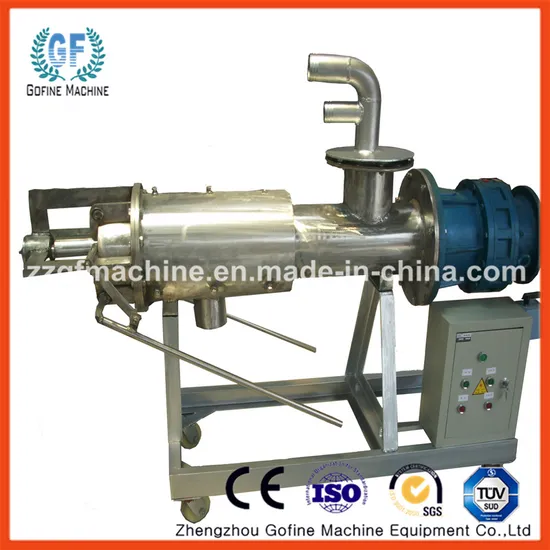

8, Pictures of thePoultry Manure Separator/Solid-Liquid Separator
About our company
Gofine Machine, establish in 2010, located in Longgang Developed Zone of Xingyang City, Henan, China, specially engaged in producing fertilizer production machinery, animal feed machinery, waste recycling machinery and trading in building machinery and food machinery and wood machinery; we have heavy standardization industrial plants with area 60000 square meter, bring advanced large metal processing equipment, including the 10 sets CNC machining center, 3sets laser cutting machine, and other equipment reaching total 100 sets; we have get known by the ISO9001-20001 certification and CE certification; Welcome you to know us more on our machine and our technology.
We take "Quality First and Customer Supreme" as our business philosophy, adhere business idea"Honesty and Excellence" and spirit of "Practical and Innovative", act "Attitude is everything" to our business and each client.
FAQ of Poultry Manure Separator/Solid-Liquid Separator
Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type our customers at home or abroad. With our experienced quality control team, we are trying to offer you the product with best quality. However, we do recognize that there maybe small amount of the product which may got faulty or damaged;

Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 24 months, our general after-sale service is changing the damaged parts, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: wear parts do not include.)

If you have any further question on pig/cow/chicken dung separator, please feel free to contact me freely!
