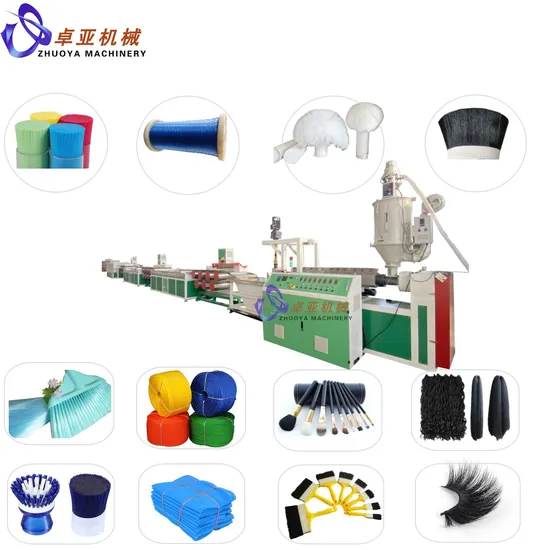

China Pet/PP/PBT/Polyester Nylon Synthetic Human Wig Hair/Broom/Brush/Rope Fiber Bristles Filament Plastic Monofilament Extruder Machine

Product Description

China Famous Pet/PP/PE/PA/PBT Plastic Monofilament Extruder Machine for Broom/Brush/Rope/Net/Synthetic Hair/Synthetic Eyelash Fiber Bristles10-Year Manufacturer
Product Description
General Description
PET/PP/PE/PA/PBT filament extruder machine is used for producing high quality monofilament which will be used to make synthetic hair, synthetic eyelash, cleaning broom, cleaning brush, paint brush, rope, net, etc.
According to customers requirements for the target filament product, our design team and engineers will give the best solution of machine design and help customer get qualified filament product with lowest cost.
Features of Machine:
Most experienced manufacturer: Professional machine and mature technology with more than 20 years experience. Green and economic: 100% recycled PET water bottle flakes/preforms or virgin granules as raw material to make qualified plastic filament yarn for various usage such as cleaning broom, brush, and packing rope. Machine Development: Continuous improvement and feedback from customers from more than fifty countries all around the world. Better performance: low energy consumption, high production capability Easy Operation: Automatic and convenient operation with one worker Specially designed automatic filament wrapping machine

Product Parameters
Machine Model&Configuration

Model	ZYLS-65	ZYLS-75	ZYLS-80	ZYLS-90
Screw L/D	30:1	30:1	30:1	30:1
Gearbox model	200	200	225	225
Main motor	18.5kw	22kw	22/30kw	30/37kw
Capacity(kg/h)	35-50kgs/h	80-100kg	100-120kg	120-140kg
Filament Dia.	0.05-0.12mm	0.01-3mm	0.015-3mm	0.015-3mm

Machine Configuration
No.	Item Name
1	Single screw extruder
2	Die head + spinnerets
3	Water trough calibration system
4	Tensile unit
5	Heating oven
6	Tensile unit
7	Heating oven
8	Tensile unit
9	Heating oven
10	Tensile unit
11	Oil coating machine
12	Winding machine
	Electrical Configuration
	1) Main motor frequency controller: ABB 2) Temperature controller: OMRON 3) AC contactor: SIEMENS 4) Thermal overload relay: SIEMENS 5) Breaker: CHINT or according to customer requirement

Certifications
Packaging & Shipping
Company Profile
Company Information
Qingdao Zhuoya Machinery Co., Ltd. is a science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastic filament production line equipment. We are expert in manufacturing plastic broom&brush filament extruding machine line, plastic rope filament extruder machine line, plastic synthetic hair filament extruder line, plastic synthetic false eyelash filament extrusion machine line, plastic safety net filament production line and plastic wire extruding machine line.
ZHUOYA is the pioneer in the field of PET monofilament extruder machine, Synthetic hair filament extruder machine and synthetic eyelash filament machine. We invest and study the technology to use recycled PET water bottle flakes to make quality broom and brush filament, and produce qualified synthetic hair filament for wigs. Zhuoya is always holding the lead in its field and explore to new field at the same time.
Our extruders are exported to more than fifty countries all around the world such as Russia, Saudi Arabia, Kazakhstan, Canada, Ethiopia, South Africa, Tunisia, Nigeria, Algeria, Mexico, India, Vietnam, Sri Lanka, Iran, Vietnam and get a very good reputation among our customers and lots of feedback to improve our machine continuously.
To build stable long-term business relationship with our customers, we provide quality product and circumspect service to guarantee the benefit of our customers and create win-win cooperation. Located in Qingdao, a beautiful coastal city in Shandong Province, Zhuoya make full use of convenient land, sea and air transportation advantages and high-tech prosperity here to provide customer speed service and quality product.
We warmly welcome customers from the world to visit our factory and build long-term business relationship.

After Sales Service
Our Service:
1. Pre-sale service:
To provide best solutions and plans as per customer requirement
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2. After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance

Customers and Exhibitions

Contact: Lucia (Sales Manager)
