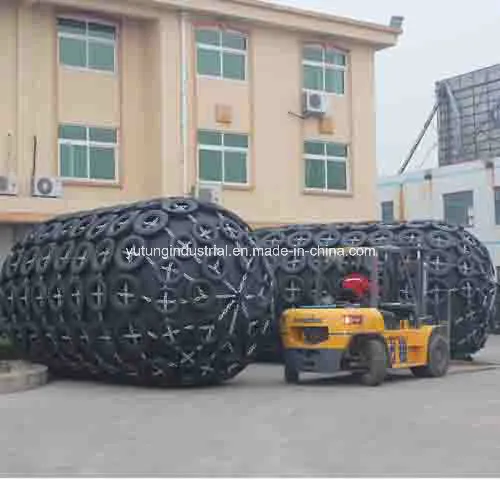

Yokohama Pneumatic Fender Boat Rubber Fender

Product Description

Product Description
Pneumatic Fender
Pneumatic fenders is a leading anti-collision device for marine application in the world today. This compressed air rubber fender is used as a protective medium. Therefore, pneumatic rubber fenders serves as a protective medium against collision when ship-to-ship contact (STS) and ship-to-berthing (STB). Pneumatic fenders has the advantages of massive energy absorption with low unit surface pressure acted upon the ship. So penumatic fenders has become an ideal ship protection medium used extensively by large tankers, LPG vessels, ocean platforms, large docks, harbor and wharfs.
Core attributes
Pneumatic fenders have any advantages including:
Easy and fast to deploy
Very low reaction and hull pressure
Performance adjustable by varying initial pressure
Suitable for areas with large or small tides
Maintains large clearances between hull and structure
Optional chain-tyre nets for heavy duty applications
Low maintenance
Optional chain & tyres for heavy duty use
Application:
Pneumatic fenders are suitable for many applications including:
Tankers, Gas Carriers and Bulk Cargo Ships
Fast ferries and aluminum hulled vessels
Temporary of permanent installations
As stand-off fenders to realign ships with shore facilities
Performance
Pneumatic Fender Technical Performance Table(As followings)
Notes:
1. Guaranteed energy absorption represents the guaranteed energy absorption at 60% deflection.
2. Tolerance of reaction fore and deflection are as follows: Reaction: 10%, Deflection: 5%.
3. Each reaction and energy absorption is measured under static conditions.
4. Testing pressure rate indicates the testing pressure at the factory.
5. Weight of fender body and net may vary 10%.
6. Special sizes are available upon request.
7. Different levels of performance according to internal air pressure levels specified this fenders.
Testing and quality
Yutung is very focused on the quality of their product. Yutung have invested in the most equipment for testing in order to meet the customer'sdemands for high quality. Yutung's fenders are used by customers world wide and they
Have been tested under rough conditions both in warm and cold climate. The large amounts of satisfied customers are our best references.

Specifications (mm)		At 60% compression; initial pressure is 0.05MPa		Weight of sphere ±10%
Diameter	Length	Energy Absorption (KJ)	Reaction Force (KN)	KG
200	500
300	500
500	1000	6	64	25
600	1200	10	86	35
700	1500	17	137	50
1000	1500	32	181	80
1000	2000	45	257	100
1200	2000	63	297	120
1350	2500	100	426	170
1500	3000	153	579	320
1700	3000	190	637	400
2000	3500	308	875	590
2500	4000	663	1380	1000
2500	5500	932	2010	1400
3000	5000	1050	2030	1800
3000	6000	1315	2488	2200
3300	6500	1814	3015	2700
3500	6000	2018	3286	2800
3500	6500	2325	3656	3200
3500	7000	2650	4018	3600
3600	7200	3180	4821	4320
