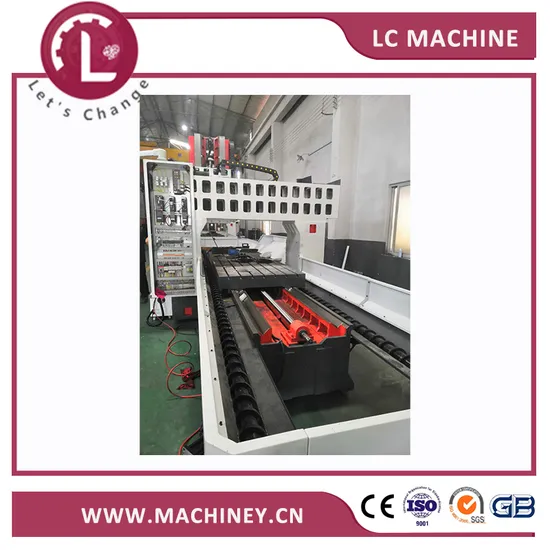

Prefect CNC Two Head Milling Machine for Steel Plate Gear Type-High Feed Rate CNC Double Head Face Milling Machine

Product Description

LC-600NC CNC DUPLEX MILLING MACHINE Super (Belt drive)
Product Introduction

Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/parallelism.
Automatic Centering

High Precision

Base Data

Main specification LC-600NC Super(Belt drive Super)
Items	Detail
Cutting capacity	Control axis number	4
	Cutting capacity mm	3mm*2
	Cutting width mm	30-600
Worktable	Dimensions mm	410*410
	Max loading weight kg	750
Spindle	Spindle speed(Infinitely variable speeds) rpm	0-600
	Spindle power kw	2*15
	Spindle taper	BT50(7:24)
	Cutter diameter mm	250
XYZ axis	X/Y/Z axis motor power kw	2/2/3
	X/Y/Z Max feed speed m/min	10/10/10
	X/Y/Z Max cutting speed m/min	6/6/6
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	80
	Lubrication oil tank L	2*3L
Power	Power	AC380/220V 40KVA
Net weight	Net weight kg	9500
Product size	Product size mm	W3350*L3550*H2500

Main part
Sort	Name	Quantity	Origin
Machinery	Ball screw (XYZ axis)	3	Taiwan HIWIN
	Guide rail	3	Quenched hard guide rail
	Main Spindle (Horizontal)	2	Japanese SEIKO
	Flexible stainless steel plate shield of worktable	2	EHONG
	Base casting	1	HT300
	Automatic lubricating machine	3	Domestic
	Oil line	3	Domestic Aluminium tube
	Bearing	/	Japan NSK
Electrical appliances	CNC system	1	Japan Mitsubishi
	MPG	1	Japan Mitsubishi
	Servo motor	4	Japan Mitsubishi
	High precision rotary table	1	Taiwan Bramd
	Spindle motor	2	MK
	AC contactor	/	Schneider
	Relay	/	Schneider

Manufacturing

Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION


Company Profile Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.


After-Sale Service
1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.

FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory. Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
