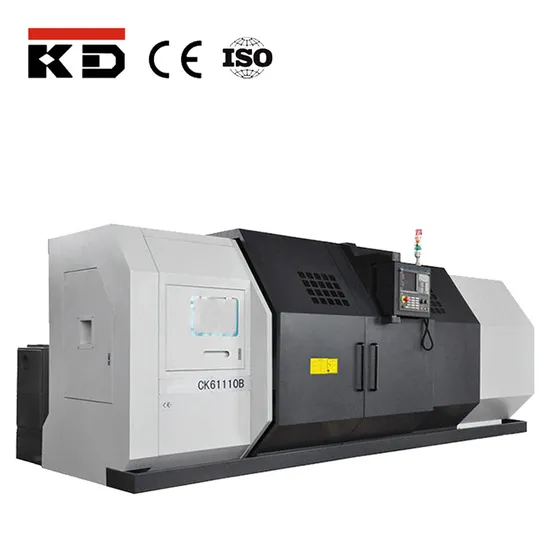

Precision CNC Lathe Machine Ck61110b/3000 with Large Bore Capability
| US$15,000.00-30,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK61110B/3000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Tool Post
4 Way, 6 Way Is Optional
Features
with Mechnical in Head Box
Controls
Siemens or Fanuc
Chuck
Hydraulic or Manual
Lubrication System
Automatic
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
100 Sets/ Month
Product Description
Specification
SPECIFICATIONS:
ITEMS | CK6191B/ CK6291B | CK61100B/CK62100B | CK61110B/CK62110B |
Max. swing over bed | Ø910mm | Ø1000 mm | Ø1100 mm |
Max. swing over carriage | Ø530mm | Ø620mm | Ø720mm |
Width of bed | 600mm | ||
Maximum turned length | 1.5/2/3/4mm | ||
Max. turning length | 1350/1850/2850/3850mm | ||
Max. weight between center | 2000kg | ||
*over gap | Ø1100 mm | Ø1200 mm | Ø1300 mm |
*Effective length of gap | 400 mm | ||
Spindle nose | D11 | ||
Spindle bore | Ø104mm | ||
Cone hole diameter and taper of spindle hole | Metric Ø120 1:20 | ||
Steps of spindle speed(Manual) | 4(Variable Within Each Step) | ||
Range of spindle speed | 10~90,20~180,40~320,80~630r/min | ||
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8m/min | ||
Max. travel of Axis X | 520mm | ||
Min. input | 0.001mm | ||
Tool post stations | 4-way | ||
Tool cross section | 40×40mm | ||
External diameter | Ø100mm | ||
Taper of bore | M.T.NO.5 | ||
Max. Traverse | 250mm | ||
Power of main motor | 15KW | ||
Power of cooling pump | 370W | ||
2m Overall dimensions(L×W×H) | 4200×2000×1930mm | 4200×2000×1980mm | 4200×2000×2030mm |
Net weight | 6600Kg | 6770Kg | 6940Kg |
Note : For each additional machine length of 1m, there will be additional net weight of 600kg | |||
