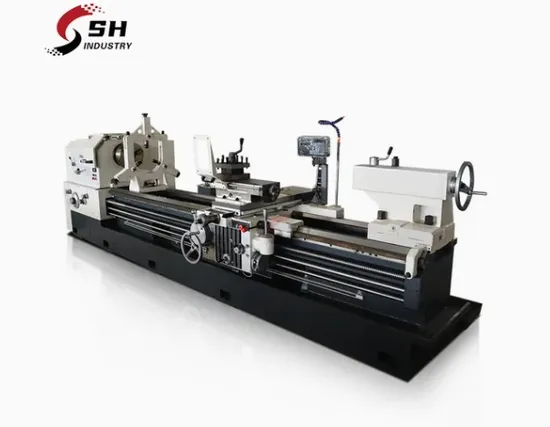

Cw6163 Cw6180 China Horizontal Metal Manual Turning Universal Engine Lathe Machine
| US$30,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6163 CW6180
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Cw6163 Cw6180 China Horizontal Metal Manual Turnin
Swing Over BedTmm
630
Swing Over Cross SlideTmm
350
Guideway WidthTmm
550
Max. Load Capacity
T3
Spindle BoreTmm
104
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8458190000
Production Capacity
200
Packaging & Delivery
Package Size
220.00cm * 175.00cm * 185.00cm
Package Gross Weight
3700.000kg
Product Description
CW6163 CW6180 China Horizontal Metal Manual Turning Universal Engine Lathe MachineProduct Description
Characteristics:
One-piece bed adopts high strength iron to ensure rigidity and precision
Ultrasonic frequency quenched guide-ways ensure good wear-resistance
Headstock gears hardened and ground to achieve precision and low noise
Main technical specifications:
| Specification | Unit | CW6163E/CW6263E | CW6180E/CW6280E | ||
| Swing over bed | mm | 630 | 800 | ||
| Swing over gap | mm | - | 800 | - | 1000 |
| Swing over cross slide | mm | 350 | 520 | ||
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 | 1500/2000/3000/ 4000/5000/6000 | ||
| Guideway width | mm | 550 | 550 | ||
| Max. load capacity | T | 3 | 3 | ||
| Spindle bore | mm | 104 | 104 | ||
| Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||
| Spindle nose type | - | C11 | C11 | ||
| Spindle speed steps | - | FWD. 18 steps | FWD. 18 steps | ||
| Spindle speed range | rpm | 7.5-1000 | 6-800 | ||
| Chuck | mm | φ315 3-jaw manual | φ315 3-jaw manual | ||
| Turret/tool post | - | Manual turret 4 position | Manual turret 4 position | ||
| Tool shank size | mm | 32 x 32 | 32 x 32 | ||
| X axis travel | mm | 320 | 420 | ||
| Z axis travel | mm | 1350/1850/2850/ 3850/4850/5850 | 1350/1850/2850/ 3850/4850/5850 | ||
| X axis feed grade/range | mm/r | 64/0.05-12.15 | 64/0.05-12.15 | ||
| Z axis feed grade/range | mm/r | 64/0.1-24.3 | 64/0.1-24.3 | ||
| X axis rapid traverse | mm/min | 2300 | 2300 | ||
| Z axis rapid traverse | mm/min | 4000 | 4000 | ||
| Metric thread grade/range | mm | 50/1-240 | 50/1-240 | ||
| Inch thread grade/range | T.P.I | 26/14-1 | 26/14-1 | ||
| Module thread grade/range | mm | 53/0.5-120 | 53/0.5-120 | ||
| DP thread grade/range | D.P. | 24/28-1 | 24/28-1 | ||
| Tailstock quill diameter | mm | φ100 | φ100 | ||
| Tailstock quill taper | - | MT5 | MT5 | ||
| Tailstock quill travel | mm | 250 | 250 | ||
| Main spindle motor | kW | 11 | 11 | ||
| Rapid traverse motor | kW | 1.1 | 1.1 | ||
| Coolant pump motor | kW | 0.125 | 0.125 | ||
| Width x Height | mm | 1400 x 1450 | 1500 x 1450 | ||
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
