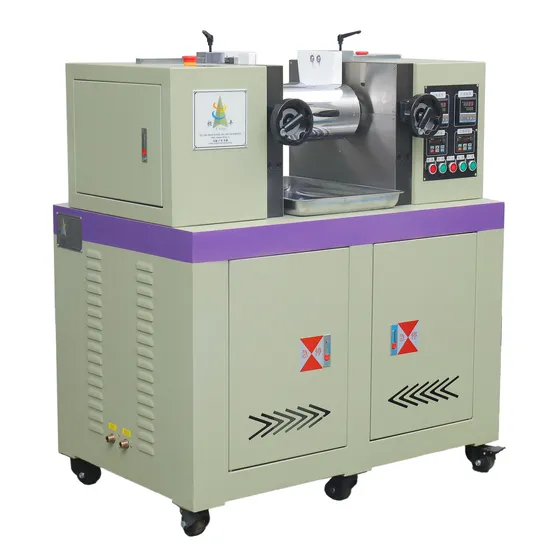

CF-120 Cheap Laboratory Main Motor 0.75kw Two-Roll Rubber Mixer Suitable for Engineering Plastics

Product Description

1. This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastics, pigment masterbatch, silicone rubber and other polymers; 2. The double rollers are mirror-chromed with electric heating and water cooling, the surface temperature of the roller is uniform; 3. The space between the two rollers is adjustable; 4. Multi-directional Safety protection device make it safe and reliable, durable.

CF open mill Model	CF-120 4 inch	CF-160 6 inch	CF-200 9 inch	CF-300 12 inch	CF-360 14 inch
Materials/Process	Max feeding quantity (KG/Batch) (Capacity depending on formula materials)
All Rubber/plastic	0.5-0.8 kg	4 kg	12 kg	15 kg	30 kg
*All production rates should be factory verified.

CF open mill Model		CF-120 4 inch	CF-160 6 inch	CF-200 9 inch	CF-300 12 inch	CF-360 14 inch
Power	kW	3.7	5.5	7.5	30	37
Roller specification	mm	120*320	160*350	210*600	300*700	360*900
Front roll line speed	r/Min	7.5	10	16.96	16.3	16.22
Maximum Roll Distance	mm	0-5	0-5	0-10	0-10	10
Speed ratio	adjustable	1:1.24	1:1.24	1:1.29	1:1.29	1:1.29
Overall weight	kg	800	1000	1200	2500	6500
Length	mm	1000	1100	1500	2745	3700
Width	mm	560	550	1600	1275	1425
Height	mm	1150	1200	2400	1657	1870
*All production rates should be factory verified.

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
