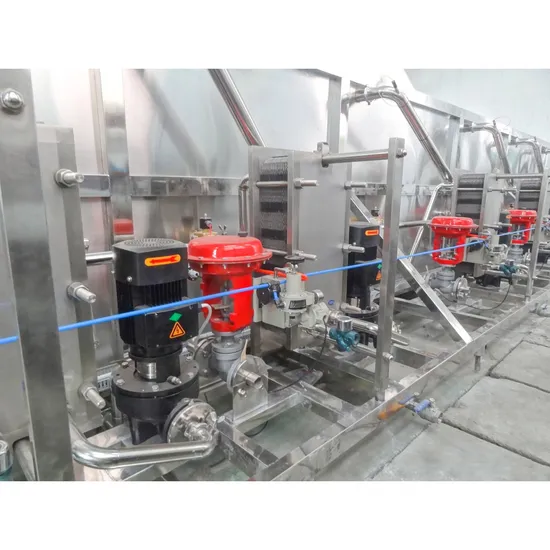

Glass Bottle Beer Tunnel Pasteurizer

Product Description

Glass Bottle Beer Tunnel Pasteurizer:
The filling temperatuer of carbonated drink is 0-4 celcius degree, and the environment temperature is 20-30 degree, so the filled bottles will be full of water drops if they are not warmed, the bottle warming machine warms the bottles by spraying warm water from the nozzles to the outside walls of PET bottles to keep the bottles warm and away from water drops, and and make it convinent for labelling.
Features:
1)The chain plate apply anti-friction and high temperature resistance engineering plastic.
2) Apply advanced PLC controller to assure all action precision.
3)The conveyor is frequency controlled.
4)All spray tubes are made of stainless steel and spray evenly.
5)All spray nozzles are made of engineering plastic.
6)The catchment flume is made of stainless steel and equipped with a level alarm device.
7)The spray-cooling tunnel has a spray cooling recycling water pump.

Model	PLJ-1	PLJ-2	PLJ-3
Capacity(b/h)	3000-4000	5000-6000	9000-10000
Bottle inlet temp.	3-5
Bottle outlet temp.	<45
Sterilizing temp.	62-85
Sterilizing time	10
Steam pressure	0.5-0.6MPa
Width of belt(m)	1.22	1.5	2
Circling water(m3/h)	6.3	10	20
Water consumption(m3/h)	1	1.5	2
	Water pressure:≥0.2Mpa,water temp. is 20C
kg/h steam consumption	200	350	600
Overall dimension(mm)	8000×1500×1650	10000×1800×1650	15000×2000×1650
Total weight(kg)	4000	80000	12000
