High Performance 90 Degree 180 Degree 360 Degree Floor Mounted Articulating Arm Folding Jib Crane Fixed Jib Crane with High Quality and Best Price for Factory
| US$799.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JIB
Condition
New
Application
Workshop, Warehouse, Coal Stack, Port, Wharf, Construction Site, Mine
Anchor
Whole-Buried
Structure
Solid Web
Material
Steel
Type
Cantilever
Product Name
Jib Crane
Rated Loading Capacity
0.25-20 Ton
Span
0.5-10m
Power Source
380V 50Hz or 400V 415V etc, Can Be Customized
Lifting Speed
6m/Min 6.8m/Min or Can Be Customized
Hoisting Mechanism
Electric Hoist
Lifting Mechanism
Electric Type and Manual Type
Control Method
Wireless Remote Controller or Handle
Keyword
Lifting Machine Jib Crane
Turning Angle
90/180/270/360 Degree
Color
Customer′s Requirements
Usage
Lift Cargos
Voltage
Follow Customer′s Requirement
Work Duty
A3-A5
OEM
Accept
Transport Package
Standard Export Packing
Specification
0.25-20 Ton
Trademark
VOHOBOO
Origin
Hubei, China
HS Code
84269900
Production Capacity
1000sets Per Month
Packaging & Delivery
Package Size
1000.00cm * 50.00cm * 100.00cm
Package Gross Weight
1000.000kg
Product Description

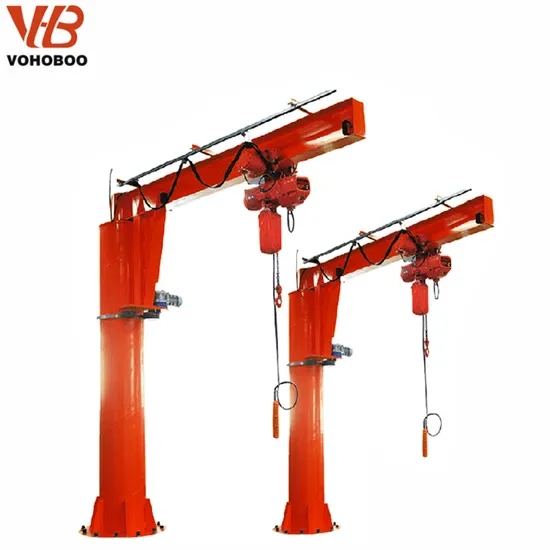

Product DescriptionJIB crane description:
Column is made of seamless steel pipe, and the main girder is made of 1-beam girder or light beam, rotating way can be manual(< 1t) or electric. JIB crane can be equipped electric wire rope hoist, electric chain hoist or manual hoist. It is suitable to work in the short-range and intensive lifting occasions. So it's widely used in workshops, warehouses, docks and other fixed place.
We can recommend different models of cranes according to different working requirements. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to client's usage.
Jib Crane is a kind of small and medium-sized lifting equipment with the recent development.Its unique structure, safe and reliable.With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space,and it can show its superiority more especially when its working in the short-range and intensive lifting occasions.Widely used in workshops, warehouses, docks and other fixed place.
1. Column using seamless pipe, main beam use I-beam or other beam.
2. Rotation can be manual or motorized.
3. Hoist can be equipped with electric wire rope hoists, electric chain hoists or manual hoists.
4. Unique structure, safe and reliable, high efficiency and flexible.
5. Can be customized according to client's requirements.
6. Easy installation
Product Details
Product Parameters
| ITEM | Specifications | ||||||||
| Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | 20 |
| Arm length | m | 1.2~20 | |||||||
| Lifting height | m | 1~15 | |||||||
| Lifting speed | m/min | 0.8/8 or as your request | |||||||
| Travelling speed | m/min | 20 / 30 | |||||||
| Rotate speed | r/min | 0.7 | |||||||
| Rotate angle | degree | 360° | |||||||
| Wire rope | mm | 4.7 | 7.7 | 11 | 13 | 15.5 | 15.5 | 17.5 | 22.5 |
| Power source | 220~480V, 50/60HZ,three phase or customized design | ||||||||
