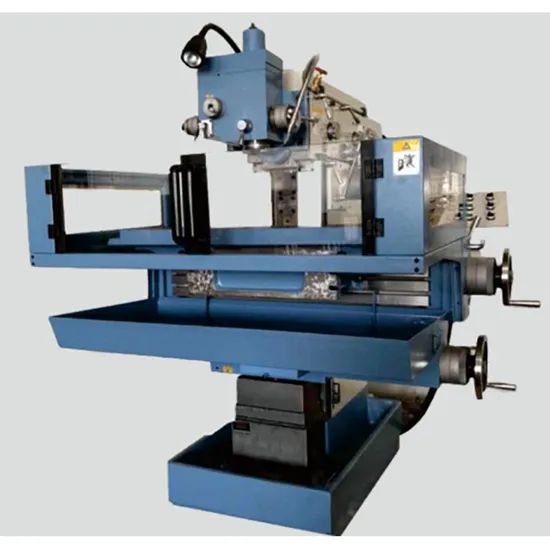

Hot Sale, Universal Tool Milling Machine

Product Description

Product Description
Application of machine:
This machine is designed to be a Universal Tool Milling Machine,can perform procedures such as milling,boring, drilling,and slotting,etc.,and is suitable for machining cutter, Fixture,die and mould,and other components with complex Figuration.With the aid of various special attachments.it can Machine all kinds of components such as spiral src,gear,rack Spline,and so on.
Features:
1, Original structure,broad versatility,high accuracy,easy to operate.
2, With various attachments to extend range of application and raise utilization.
3, Model XS8132Awith programmable digital display system resolving power is uo to 0.01mm.
4, With protection cover on cutting zone of working table,ensur safe and clean. Product Parameters

Mainspecifications X8132A XS8132A
		Working table	Horizongtal working table(W×L)	750×320mm
			Vertical working table(W×L)	850×250mm
		Longitudinal/Transeerse/Nertical Travel		400/300/400
		Universal table	Horizongtal swivel	±360°
			Inclination to front and rear	±30°
			Inclination to front and right	±30°
		Vertical spindle head	Vertical travel of quill	60mm
			Axia inclination on left and right	±90°
		Horizongtal Spindle	Taper hole	ISO40
			The height from axis to ground	1330mm
			Min,distance between axia and surface of horizontal table	40mm
		Vertical spindle	Taper hole	ISO40
			Min,distance between nose and surface of horizontal table	10mm
		Horizontal and vertical spindle speed :steps/range		18steps()40-2000rpm
		Longitudinal,transeerse and vertical feeds:steps/range		18steps()10-500min
		Axial feed of quill of vertical spindle ; steps/range		3steps()/0.03-0.12mm/rev
		Power of main motor/Feed motor		3kw/1.5kw
		Max.table load/MAX.load of cutter		300kg
		Overall dimensions(LxW×H)/Net weight		181×122×171cm/1600kg
		Packing dimensions fou export/Gross weight		200×164×210cm/1900kg

The following special accessories are available if ordered:
1,Univereal table
2,Rotary table
3,Parallel vice
4,Dividing head
5,Slotting head
