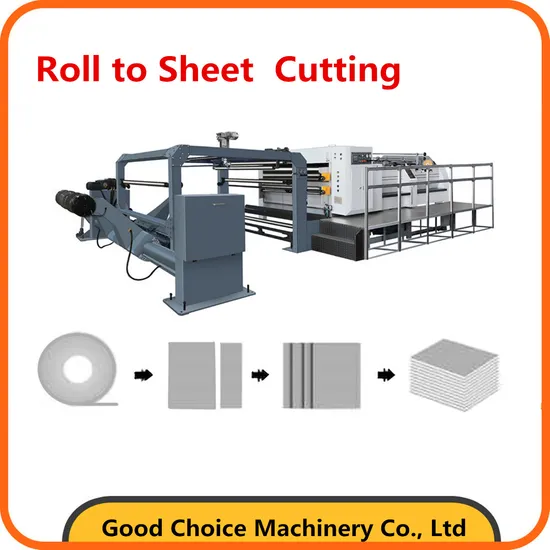

Roll to Sheet Paper Roll Cutting Machine

Product Description

Servo Driven High Precision Sheet Cutter
Product Description Our paper roll cutting machine adopt the advanced technique from Taiwan and Germany, and combined with our more than 20 years' experiences in producing sheet cutter machines. The machine is designed as high-speed & high precision, transmitted by servo motor, tungsten steel single blade. Cutting blades are imported from Germany, reduce the cutting load & noise effectively, so knife service time is lengthen. Reduce the shake when machine operates at a high-speed through balance adjustment.Germany precise bear and cutting knife assure the high cutting precision. Germany accuracy bear and improved no-clearance gear with low meshing noise, have twice longer on service time compared with the conventional design. 3 sets of slitting knifes, with clean cutting edge and middle slitting, no bur and dust generated, can be printed directly. The speed of cutting paper have fast and slow speed sections in order to show the effect of separating counting and stack. The reduction wheels have a good affection on protecting paper surface against any scratches and do not have any facula. Electric control system with energy storage tank can save 30% electricity consumption. Under full capacity, the current is about 10A to 15 A VS 60A without energy storage tank. Product Parameters

Paper thickness	50-550g
Max paper width	1400mm
Cutting length	400-1450mm
Cutting accuracy	within 0.2mm for cutting length in 1000mm
Max roll diameter	1800mm
Max Speed	300 cuts/min
Max. cutting meter speed	300m/min
The format of slitting	2 sheets
Voltage:	380V, 28kw, 3Phase
Machie sizes	11500*5900*2310mm
Weight	11,550kg

Detailed Photos 1 Unwinder Stand (put on machine motorized brake system)
Type: double arm type for paper core 3"6"12" Roll Rack.
2 unwinds pick-up type located at the rear of the machine structurally sized to be able to hold reels of a weight approximately 2000kgs. The up and down movements are all hydraulic and are directly controlled from the console by selectors that control the solenoid valves.
Oil pressure to control the paper arm before and after closing and moving and lifting. Lifting movement capable of stable and rapid, more simple and convenient operation.
Put the paper roll diameter and paper weight number into touching screen, the tension will be controlled by computer Automatically.
2 Cutting Unit
On the knife the British cutter method to reduce the load and noise when the cutter extend cutter life.
On knife roller body to steel welding gave precision machining, and dynamic balance adjustment, effectively reduce the vibration and noise of the high-speed operation.
Under the knife: knife block with cast iron integrally molded casting, precision machining, good stability.
The back cutter: made of special steel precision knife processing, long life blade easily adjustable.
3 Electronic Control (Inovance PLC) TPC7062KS and INOVANCE Processor communication, mainly used in the production of data input equipment operating status monitoring, and system failure alarm indication.
4 The Conveyor and Paper Collection System by Jogger
Conveyor system with mult-stage: from high speed to low speed. First to separate the cut paper quickly, and then overlap the paper, then collect and pile the paper.
Lift stacked set paper sets, the paper stack to a considerable height, that is automatically dropped. The stacker table has three sides shake finishing function, the side of the motor to drive the paper, the paper, on both sides by high-quality motor jogger to adjust the amplitude of the paper manually to improve the simplicity and safety of the operation.
5 The Delivery Section Using Automatic Set Paper Equipment Lift stacked set paper sets, the paper stack to a considerable height, that is automatically dropped. The stacker table has three sides shake finishing function, the side of the motor to drive the paper, the paper, on both sides by high-quality pneumatic by hand wheel to adjust the amplitude of the paper to improve the simplicity and safety of the operation.
6 Decurler Device This newly designed decurler can flatten the paper with a much better result than conventional decurler system. Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability.
7 The Angle Auto-adjustment (paper aligning system)
