High Speed Low Noise Straight-Line Wire Drawing Machine-800 I-Turn Take-up Unit

Product Description

Product DescriptionStraight-line wire drawing machine-800 i-turn take-up unit

1. Company introduction:
Wuxi Jiexiang Machinery Co., Ltd. was established on February 26, 2010. It is located on the shore of the beautiful Taihu Lake, at the core of Suzhou, Wuxi, and Changzhou, 10 kilometers away from Wuxi Airport, and close to the Beijing-Shanghai Expressway, making transportation very convenient. The company specializes in the production of DL500-1600 inverted drawing machines, LZ-12/560 straight-in drawing machines, LW1-10-560 pulley drawing machines, LT200-560 water tank drawing machines, precision drawing machines specially used in the fastener industry, as well as wire drawing auxiliary machines, pointing machines, elephant trunk type unwinding machines, spooling machines, feeding machines, butt welding machines, etc. Our products have been sold to the United States, Japan, Europe, Vietnam, Philippines, Indonesia, India, Argentina, Egypt, and other countries. In the domestic and foreign metal products industry and fastener industry, we enjoy a good reputation.
2. Straight Line Drawing Machine:
Product Description
Company produced Straight wire drawing machine is the introduction of foreign advanced technology developed after absorbing a high grade is paricularly suitable for drawng high-strength, high-performance requirements of the drawing machine equipment.Mainly used in steel cord,bead wire,steel wire rope, stainless steel wire, gas shielded weldng wire and other products. The series drawing machine drawing ree diameter350-900mm,the largest wire diameter up φ14mm, the minimum wire diameter can be φ0.7mm.
The device has a man-machine dialogue,motor over-temperature protection,pressure abnormalties,meter ful-scale alarm, fault display and other features.Its transmission structure using fat twin turbo package vice + narrow V joint zone,low noise; reel Slot used n allcooling and air cooling combinaton of methods, good cooling effect,AC variable frequency speed control mode and Siemens PLC,is a kinds of efficient,easy to operate, high degree of automation, advanced drawing wide range of technology equipment.
Installation Instructions

Model	Drum diameter(mm)	Max Drawing Pass	Max Enter line(mm)	Min Finished product(mm)	Motor Power (KW)	Speed of finished product(m/s)	Noise (dBA)
LZ-450	450	≤14	4.5	0.85	11-22	20	≤82
LZ-560	560		5.5-6.5	1.3	22-45	20	≤82
LZ-600	600		6.5-7.0	1.35	30-55	20	≤82
LZ-800	800		10	2.5	55-90	16	≤83
LZ-1000	1000		14	3.5	90-132	15	≤83

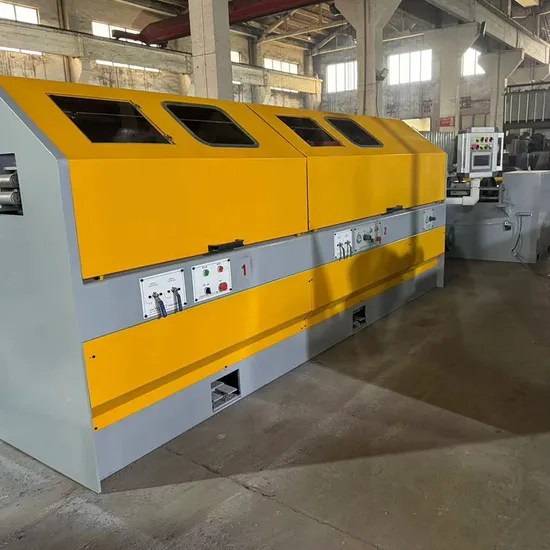

3. Wire drawing machine pictures
4. Contacy ways
Dylan Wang
Marketing Manager


Add: Baojiaqiao,Qingdang Village,Ehe Town,Xishan District,Wuxi City,China
Wuxi Jiexiang Machinery Co.,Ltd
