Wholesale Agriculture Greenhouse Picking Cart Harvest Trolley for Tomato
| US$4,500.00-8,500.00 | 1 Set (MOQ) |
Basic Info.
Application
Fruit, Straw
Power Source
Electric
Harvest method
Picking
Drive Type
Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
CE ISO
Color
Yellow
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
Provided
Rise
6.5 Meters
Table Size
1800*450mm
Lifting Motor
24V 0.8kw
Recharger
24V 15A
Weight
450kg
Self Weight
1750mm
Balloon Tube
1000n
Equipment Structure
Cross Lift
Rechargeable Battery
24V230ah
Device Color
Grey, Yellow
Control Form
Electric Buttons, Knobs, Push and Pull
up /Down
Foot Switch Control
Side Pedal
Convenient for Staff up and Down and Safety
Transport Package
Standard
Specification
Standard
Trademark
KIVAS
Origin
China
Product Description

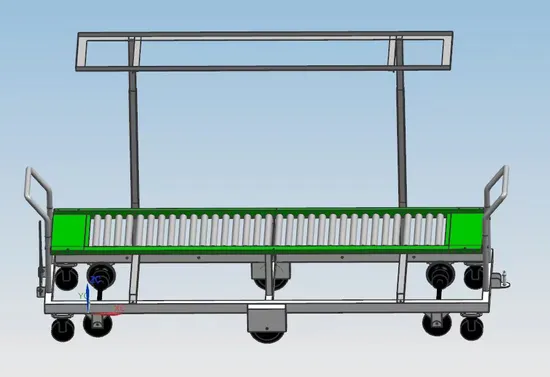

Product DescriptionAdvantage features: The double-layer harvesting and transportation vehicle is a very practical harvesting and transportation vehicle. The vehicle fully utilizes the perspective of ergonomics, designs a two-layer pallet, and installs rollers on it. Operators can easily move the harvesting box; The whole vehicle is composed of 4 track wheels and 6 rubber wheels, which can walk on tracks or land. Maximum load capacity of 500 kilograms, capable of 360 degree rotation, suitable for roads between 2 and 3 meters in the middle; Installing a third layer of pallets can hold cardboard boxes or defective fruits; Equipped with a drag and drop system, it can pull each other on its own; A 2000 square meter greenhouse with 2 units is currently a popular product among users;
| Product model | LRQ-SJ-6.5 | crane motor | 24v0.5KW | ||||||
| rise | 6.5 meters | Lifting motor | 24v0.8KW | ||||||
| Platform size | 1800*450mm | Charger | 24v/15A | ||||||
| Table Height | 520mm | Rising and falling speed | 3-5m/mim | ||||||
| External dimensions | 2350mm*730mm*2120mm | Walking speed | 2Kw/h (adjustable) | ||||||
| Wheel size | Center distance 550mm, outer package 620mm | Battery | 24v230Ah | ||||||
| Self height | 2120mm | system voltage | 24v | ||||||
| Steering method | Forward, backward, left and right, lateral movement, 360 degree rotation | Control form | Electric buttons, knobs, push-pull buttons | ||||||
| Equipment load capacity | 150Kg | Security support | 4 safety legs | ||||||
| Track width | The distance between the centers of the front and rear wheels is 1600mm | weight | 750Kg | ||||||
| Track wheel | Power wheel 45 # steel treatment+super strong nylon for driven wheel | Equipment structure | Cross type lifting | ||||||
| Walking style | Vertically electric, horizontally manual | Equipment color | Grey, Outdoor Yellow | ||||||
| Tabletop board | Anti slip patterned aluminum plate | Forward and backward | Foot switch control | ||||||
| Track materials | Diameter 50, wall thickness 3.5 galvanized pipe (customer's responsibility) | Track bracket | Center distance 550mm, spacing 1.5 meters (customer's responsibility) | ||||||
| Entry method | Mechanical automatic door opening and closing design. Convenient for personnel to move up and down, improving work efficiency | Side foot pedal | Convenient for staff to get up and down and ensure safety | ||||||
| safety factor | Add alarm systems to the left, right, front, and rear of the picking truck. If the tilt of the picking truck exceeds 2 degrees, an alarm will be triggered. If it exceeds 3 degrees, an alarm will be triggered. This system can detect the standardization, safety, and high reliability of the track's long-term use | user-friendly design | Supporting staff cooling fan, this is an upgraded detail to improve work efficiency | ||||||
| controller | Brushless servo controller | electric machinery | 800w brushless servo motor with high torque, large output power, and long service life | ||||||
Company Profile
Customer Visit
Certifications
Main Products
Customer Feedback
FAQ
| 1: How to place an order? |
| Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible. |
| 2: What is your price? |
| Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP) |
| 3: How should I pay? |
| Answer: We accept wire transfer; letter of credit; Paypal; Wetern Union. |
| 4: What is the delivery time? |
| Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us. |
| 5: About the warranty |
| Answer: 1-year warranty. Lifelong technical support via email or video. |
| 6: Mode of transportation |
| Answer: You can choose sea, air, rail transportation. |
