Geared Head Vertical Drilling Machine Z5040A
| US$1,200.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5040A
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
40mm
spindle travel
180mm
Spindle taper
MT4
speed
2050pm
Motor
2.2KW
Transport Package
Plywood Case
Specification
465kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459290000
Production Capacity
20 PCS/Month
Product Description

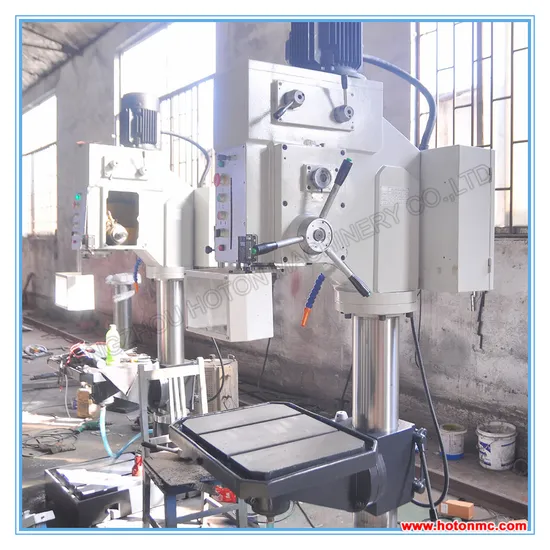

VERTICAL ROUND COLUMN DRILLING MACHINE FEATURES:
This machine is designed for drilling, counterboring ,reaming, tapping, spotfacing, etc, The maximum drilling capacity is 50mm on small or middle sized workpieces. It is widely used in machine works and repair shops for single piece or small lot production, having the features of abundant horsepower and high rigidity when compared with all the others of its kind at home and abroad.
| STANDARD ACCESSORIES | SPECIAL ACCESSORIES |
| ·Work light ·Coolant system ·Fender device ·Tool box & tools 1 set | ·Lifting worktable by motor(only for model Z5050) |
SPECIFICATIONS:
| NAME | Z5040/Z5040A |
| Maximum Drilling Diameter | 40mm |
| Taper Of Spindle Hole | MT4# |
| Distance From The Center Of Spindle To The Surface Of The Vertical Column | 350mm |
| Maximum Travel Of Spindle | 180mm |
| Range Of Spindle Speed | 50~1450mm |
| Maximum Distance From Spindle Nose To Base Plate Working Surface | 1320mm |
| Maximum Distance From Spindle Nose To Working Table | 780mm |
| Dimensions Of Working Table | 560×385mm/560×560mm |
| Dimensions Of Base | 730×500mm |
| Width Of T Slot | 18mm |
| Distance Of T Slot Of Base | 150mm |
| Range Of Feed | 0.1,0.2 |
| Power Of Main Motor | 0.85/1.5kW |
| Power Of Coolant Pump | 60W |
| Overall Dimension(L×W×H) | 73×56×222cm |
| Packing Size(L×W×H) | 113×70×228cm |
| Gross Weight/net Weight | 545/465kg |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty mod els by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
