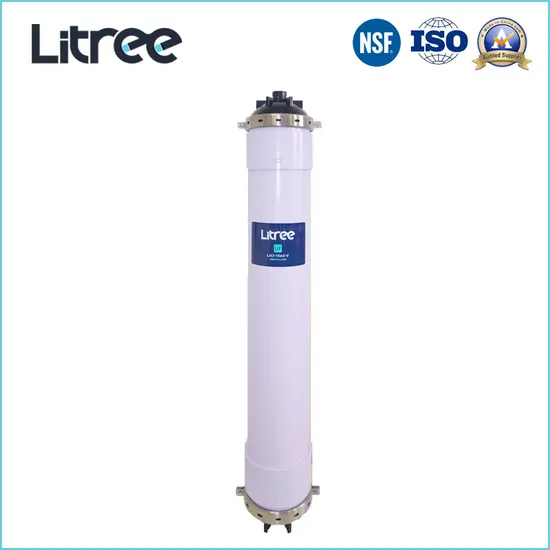

Litree Municipal Drinking Water Treatment Hollow Fiber UF Membrane (Aries Series)
| US$510.00-1,450.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Aries-40
Motive Force
Pressure
Style
Hollow
Performance
Efficient Filtration
Certification
CE, ISO,Amst
Membrane Type
Hollow
Menbrane Material
Hydrophic PVC
Model
Aries-40
Filtration Precision
0.01micron
Filtration Mode
Inside-out
Active Membrane Area
40 M2
Flux
2.4-6.4 Litree/H
Weight
50 Kgs
Mwco
50, 000 Dalton
Turbidity
Less Tahn 0.1 Ntu
Package
1 PC/CTN
Appilication
Municipal Water Treatment Plant
Transport Package
Carton
Specification
Inside-out Pressure Vessel UF Module
Trademark
LITREE
Origin
China
HS Code
8421999000
Production Capacity
500PCS/Month
Product Description
Litree Water Purification Hollow Fiber UF Membrane Module (Aries Series)About Litree:
LITREE company is the biggest hollow fiber UF membrane manufacturer in China, we provide quality pressure vessel UF module, integrated UF purifying equipment, immersed membrane for MBR system, and we are also the first brand in Chinese residential UF filter market.
Specifications:
| Model | Aries-10 | Aries-40 |
Filtration model | Inside-out | Inside-out |
Designed water flux (m3/h) | 0.6~1.6 | 2.4~6.4 |
Designed water flux (L/m2/h) | 60~160 | |
Filtration water turbidity | <0.1NTU | |
General coliform group separation | No detection in each 100 ml water sample | |
Feces coliform group separation | No detection in each 100 ml water sample | |
Bacteria separation | No detection in each 1 ml water sample | |
Standard membrane area (m2) | 10 | 40 |
Hollow fiber amount (unit) | 3940 | 11000 |
Net weight (kg) | 18 | 37 |
Wet weight (kg) | 26 | 58 |
Module dimensions (mm) | 187x1398 | 277x1715 |
Membrane type | Double layer hollow fiber | |
Filter membrane material | Approved PVC | |
Membrane housing material | PVC | |
Material of enveloping glue on ends | Epoxy resin | |
Molecular weight cutoff | 50,000 Daltons | |
Inside/outside diameters of hollow fiber (mm) | 1.0 /1.6 | |
No. | Model | Design flux (m3/h) | Backwash flux (m3/h) | Dimension (mm) L*W*H | Weight Dry/Wet (KG) |
1 | Aries-10×2-E | 1.0-2.0 | 3.5 | 975×880×1750 | 260/300 |
2 | Aries-10×3-E | 1.5-3.0 | 5.25 | 1220×880×1750 | 280/340 |
3 | Aries-10×4-E | 2.0-4.0 | 7 | 1465×880×1750 | 300/380 |
4 | Aries-10×6-E | 3.0-6.0 | 10.5 | 1875×850×1850 | 350/470 |
5 | Aries-10×8-E | 4.0-8.0 | 14 | 2350×910×1900 | 390/550 |
6 | Aries-10×10-E | 5-10 | 17.5 | 2580×910×1900 | 430/630 |
Notice: Design flux depends on raw water quality.
Application:
- Turbidity removal for wine; Sterilization and turbidity removal for fruit wine, grape wine, and yellow wine.
- Drinking water treatment in cities, towns and rural area.
- Get rid of pyrogenfor pharmacy water. - Concentration treatment of food, zymolysisand milk.
- Various dialysis and blood filtration in medical treatment.
- Treatment of municipal water, surface water and well water for drinking.
- Pretreatment and post-treatment of reverse osmosis, raw water includes seawater, surface water, well water and sewage water, etc.
- Recycle use of condensation water
- Treatment of manufacturing water for food and beverage.
- Deep treatments of wastewater for recycle.
