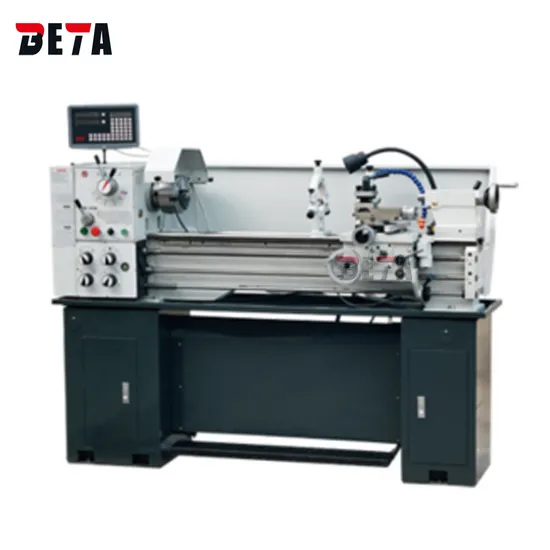

Horizontal Small Bench Metal Turning Lathe CZ1440g-1
Basic Info.
Model NO.
CZ1440G-1
Type
Horizontal Lathe
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Horizontal Small Bench Metal Turning Lathe CZ1440g
Max.Swing Over Bed
355mm
Distance Between Centers
1000mm
Tool Post Type
4-Way Toolpost
Spindle Motor
1.5kw
Chuck
Manual Chuck
Voltage
380V
MOQ
1 Set
Delivery Time
1 Month
Spindle Bore
51mm
Width of Bed
186mm
Spindle Nose
Mt5
Spindl Speed
70-2000rpm
Key Word
Small Bench Lathe
Control
Manual Lathe Machine
Transport Package
Wooden Case
Specification
700mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
192.00cm * 75.00cm * 76.00cm
Package Gross Weight
565.000kg
Product Description
Horizontal Small Bench Metal Turning Lathe CZ1440G-1Standard accessories:
base
3-jaw chuck
4-jaw chuck
Working lamp
Cooling system
Foot Brake system
Optional accessories:
Live center
Face plate
Lead screw cover
Taper turning attachment
American quick change toolpost
2-axis DRO
| Model | Unit | CZ1440G-1 |
| Swing over bed | mm | φ355 |
| Swing over carriage | mm | φ220 |
| Swing over gap | mm | φ500 |
| Width of bed-way | mm | 186 |
| Distance between centers | mm | 1000 |
| Taper of spindle | M.T.5 | |
| Spindle diameter | mm | Φ51 |
| Step of speed | 8 | |
| Range of speed | rpm | 70~2000 |
| Head | D1-4 | |
| Metric thread | 26kinds (0.4~7mm) | |
| Inch thread | 34kinds(4~56T.P.I) | |
| Moulder thread | 16 kinds(0.35~5M.P) | |
| Diametral thread | 36 kinds(6~104D.P) | |
| Longitudinal feeds | mm/r | 0.052~1.392 (0.002"~0.0548") |
| Cross feeds | mm/r | 0.014~0.38 (0.00055"~0.015") |
| Diameter of lead screw | mm | φ22(7/8") |
Features:
1. Bench metal manual lathe is a small lathe that can complete the processing of lathes, drills, borings, metric and inch threads, and is suitable for the processing of metal and non-metal
parts.
2. It is an instrument, light industrial machinery, motorcycle, auto parts and other industries and schools Ideal equipment for single-piece processing or mass production in teaching,
automobile maintenance, home maintenance, scientific research units, etc.
