Carboxy Methyl Cellulose Chemical Pulverizer Super Fine Grinding Machine Grinder Hammer Mill for Sale

Product Description

Carboxy Methyl Cellulose Chemical Pulverizer Super Fine Grinding Machine For Sale:
1. The fineness of processing particle size reaches 1-74um, the particle size distribution is narrow and there are no large particles;
2. The materials collide with each other to be crushed, and materials with a Mohs hardness of 1-10 can be processed with little wear and no iron pollution;
3 Reasonable cooling flow field, due to the rapid expansion of the air flow during the crushing process, the temperature of the air flow is reduced, so it is particularly suitable for the processing of heat-sensitive and low-melting materials;
4. Optimize the structure of the equipment, improve the performance of the equipment, and effectively disperse and dissociate the agglomerated ultrafine powder and polymer;
5. The original hierarchical flow field technology can obtain the best crushing efficiency and strict particle size cloth. The crushing particle size can be adjusted between 1-74um, the finest can reach sub-micron level, the material loss is small, and the crushing cavity can be realized The materials in the body are basically completely crushed, and there are few residues. The inner wall of the device has no dead corners and is easy to clean. It fully complies with GMP standards. ;
6. The original special jet flow and staged flow field technology is suitable for the processing of adhesive materials;
7. Can mix and crush several kinds of materials, and has a good mixing function;
8. Fully sealed negative pressure operation, no environmental pollution
Carboxy Methyl Cellulose Chemical Pulverizer Super Fine Grinding Machine For Sale Main Data:
CJ series grinding mill models :

Specification/Model		CJ-20	CJ-30	CJ-40	CJ-60	CJ-80	CJ-100	CJ-120		CJ140
Power (kw)	Crushing part	7.5	11	22	30	55	75-90	110-132		160-200
	Classification vane wheel	0.75	1.5	2.2	4	5.5	7.5	18.5		22
	Screw Feeder	0.37		0.75			1.1			1.5
Speed (r/min)	Crushing plate	7500	6500	5500	4200	3000	2500	2000		1600
	Classification vane wheel	900-3200	800-3000	750-2800	750-2700	600-2400	500-2000	400-1600		200-1400
Air volume (m3/h)		250-500	700-1200	1200-2000	2200-3600	4000-7500	8000-12000	12000-16000	12000-20000
Final product size (um)		2-75							1-75
Capacity (kg/h)		2-50	50-200	70-250	80-500	150-1500	200-5000	250-8000	1000-10000

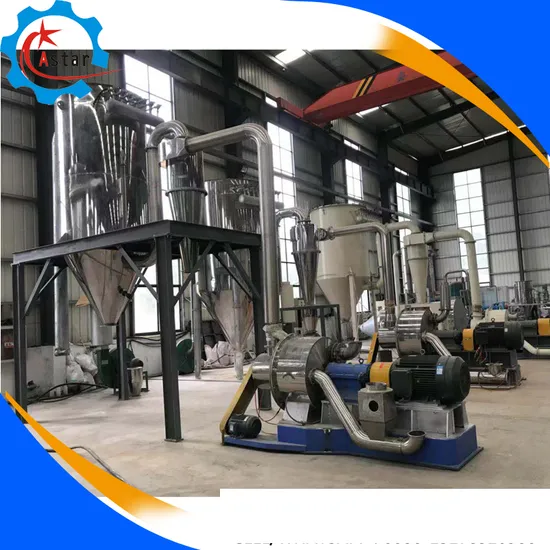

Carboxy Methyl Cellulose Chemical Pulverizer Super Fine Grinding Machine For Sale More Photos :
To know more Carboxy Methyl Cellulose Chemical Pulverizer Super Fine Grinding Machine For Sale , pls contact with us freely.
