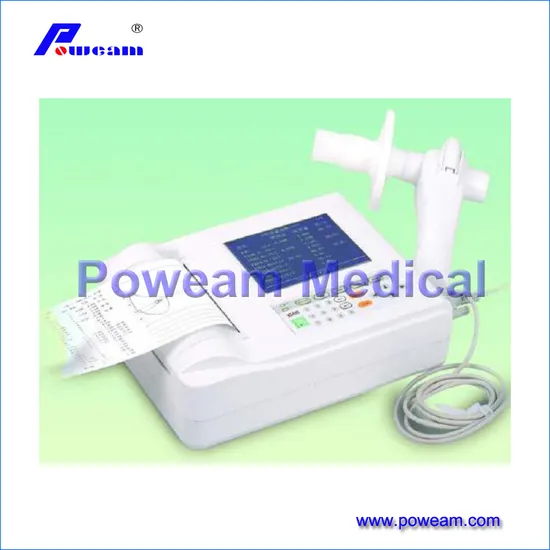

Portable Pulmonary Function Spirometer with Large Screen

Product Description

Portable Pulmonary Function Spirometer with Large Screen(MSA99)
CE approved portable Spirometer:
It can display all parameters on 5.7 320×240 dots LCD, and can store 300 copies of measurement report
Soft-touch keys, easy to maintain
Built-in precise 110mm thermal printer
Small size, light weight and easy to carry.
The spirometer can be connected to PC station through USB socket, completing a pulmonary function test directly with workstation, also thousands of measurement records can be stored.
PC workstations support the measurement and comparison functions before and after taking medicine.
PC workstation support English/Chinese display and report print.
High-precision differential pressure flow sensor

Spirometer Specification:

Specification Items	Pulmonary Function Spirometer
Display Screen	Diagonal line 5.7inches
	Monochrome LCD
	Resolution 320*240
Control	Standard:UTILITY KEY,SVC KEY,FVC KEY,MVV KEY,PRINT KEY,10WORDS KEY,[ ]KEY, KEY,START KEY,STOP KEY, KEY, KEY, KEY, KEY
	Light alarm
Measurement means	Flow velocity detection: pressure gradient pneumatic flow sensor
	Capacity detection: flow velocity integral
measuring range	Capacity range: 0L ~ 9L Flow velocity range: 0 ~ 14L / s
measurement accuracy	Capacity: 0L ~ 1.6L (± 50ml) 6L ~ 9L (± 3%)
	Flow rate: 5% or 0.2L / s
	Respiratory rate: 4 / 20 ~ / min (± 1 / min) 20 / 60 / min (error: ± 5%)
measuring timelimit and degree	Vital capacity: every 50s, measuring 3 FVC: per second, 25s, measuring 3 The maximum ventilation volumn: every 12 seconds, measuring 3
Paper Recorder	Method: dot matrix
	Level Resolution Ration: 8 d/mm(speed 25mm/s) Uprightness Resolution Ration: 8 d/mm
	Wave Channels: 1
	Paper Width: 110mm(1.97inches) Paper Length: 15m(100inches)
	Formfeed Speed: 12.5,25 and 50mm/s(±2%)
Power supply	AC: 100V~240V DC: rechargeable Nickel-metal hydride (NI-MH), 14.4-volt, 1.8 amp hour
Fuse	100V~240V AC:F2A250V,5×20mm
Safety classification	IEC60601-1 class I, type CF
