High Grade Pem Proton Exchange Film Sample Support Perfluorosulfonic Acid Membrane

Product Description

Proton Exchange Membrane Introduction: Fuel cell proton membrane is a solid polymer electrolyte with excellent heat resistance,mechanical properties,electrochemical properties and chemical stability. It can be used under harsh conditions such as strong acids, strong bases, and strong oxidants. Fuel cells prepared by proton membranes can be widely used in passenger cars, commercial vehicles, forklifts, unmanned aerial vehicles, backup power sources, portable generators, cogeneration systems for homes and commercial buildings, etc.
Product Parameters

item		Unit	Typical value
Dimension	Thickness	μm	15.0±1
	Length/Roll	m	≤100
	width	mm	≤570
lonomer IEC		mmol/g	1.00~1.10
H, Crossover (23°C,0.1Mpa,2h)		ml/min.cm²	≤0.01
In plane Conductivity (85°C,50%RH)		mS/cm	≥ 30
Mechanical Strength (25°C,50%RH)	TD	MPa	≥ 25
	MD
Young' s Modulus (25°c)	TD	MPa	≥ 250
	MD
Hydration Dimen-sional Change (80°C)	TD	%	≤7.5
	MD

PACKING:

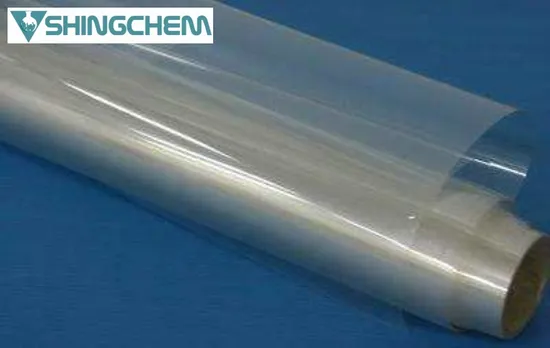

1.This product is protected by a back film and supplied in rolls, which facilitates the automated production of membrane electrode assemblies (MEA). 2.The film roll is vacuum-encapsulated in four layers, heat-sealed bag, dust bag, PE bag, and carton from the inside to the outside The carton can be opened in a normal environment, and the inner packaging must be opened in a clean environment to prevent the film from being contaminated.
