Product Description

Product Description

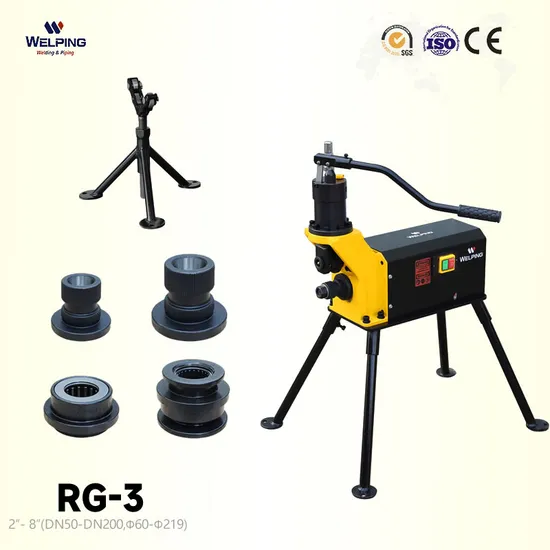

*Model RG-3 Electric Hydraulic Roll Grooving Machine is designed to roll grooves on steel pipes and Stainless Steel. from 2"-8" (DN50~DN200) SCH10 / SCH40.*The lightweight and compact design of this product is a cost-effective solution that can help save money on grooving tools.*With its efficient and portable design, it provides a convenient alternative to bulky and expensive machinery. This makes it an ideal choice for light weight and compact design.*Inbuilt high-performace gear reducing motor contributes compact size and low noise.*Our innovative split-type hydraulic system is designed to prevent oil tank leakage and increase the overall lifespan of the machine. Additionally, our groove depth lock knob ensures the highest quality grooves and maximum efficiency.
PARAMATE

Model	RG-3
Suitable materials	Carbon Steel,Stainless Steel
Capacity	for 2"-8" steel pipe SCH10/SCH40
Power supply	220V/110V
Frequency	50HZ /60HZ
Max wall thickness	6mm
Motor power	800W
Output speed	30RPM
Packing gross weight	47kgs
Packing size	56*26*65cm

Drive Unit

Catalog Number	Phase	Power	Voltage/Frequency
900030	Single	800W	220V,50/60HZ
900031	Single	800W	110V,50/60HZ

STANDARD PARTS

Item Number	Description		Net weight
911074	Drive roller 2"-6"(φ60~φ168)		1.30kg
911075	Drive roller 8" (219)		1.40kg
912018	Groove roller2"-6" (φ60-φ168)		0.45kg
912032	Groove roller 8"(φ219)		0.45kg
998028	Pipe stand for 2"-8"		2.20kg

Optional Parts

Item Number	Description		Net weight
998026	Foot switch		1.50kg

Detailed Images
Product Specifaications Fine Structured parts
All for qualified performance
Pipe Stand
2"-8" (Φ60-Φ219)
Foot switch
Drive Roller
One Set 2"-6" (Φ60-Φ168)
One Set 8"(Φ219)

Groove Roller
One Set 2"-3" (Φ60-Φ89)
One Set 31/2"-6"(Φ101-Φ168)
One Set 8"-12"(Φ219-Φ325)
Pipe Stabilizer
Protect the pipe from moving
Product Packing
