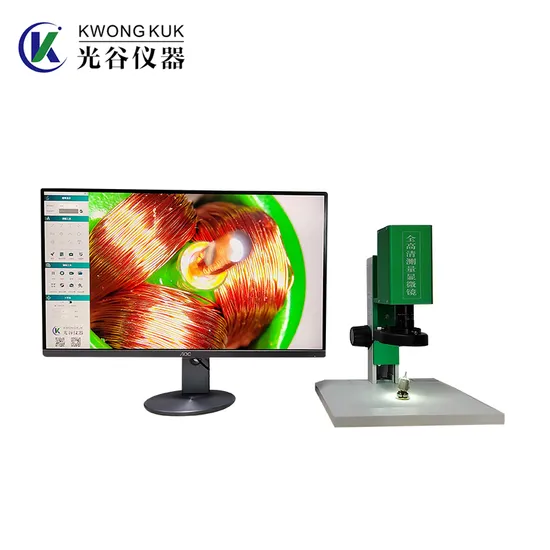

High Definition 4K Electronic Measuring Digital Video Microscope for Phone PCB Repair
| US$928.00-1,250.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HD800M650X
Magnification
50-100X
Type
Video
Number of Cylinder
Binoculars
Mobility
Desktop
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Usage
Teaching, Research, Repair
Principle
Optics
Principle of Optics
Video
Transport Package
Foam+Carton
Specification
450x420x120
Trademark
KWONG KUK
Origin
China
HS Code
9011800090
Production Capacity
1000
Packaging & Delivery
Package Size
53.00cm * 42.00cm * 30.00cm
Package Gross Weight
8.000kg
Product Description
Product DescriptionOptical system Specifications | Optical Len | 0650A |
| Optical conversion ratio | 1:8.33 | |
| Ratio of the objective | 0.6X-5.0X | |
| Camera eyepiece magnification | 0.5X | |
| Optical ratio | 0.3X-2.5X | |
| Video magnification | 23X-195X | |
| Field of view | 2*3.5-13.7*24.5mm | |
| Working distance | 80mm | |
| Center distance | 120mm | |
| CCD System specifications | Resolution ratio | 3840*2160P |
| Sensor size | Sony 1/2 | |
| Pixel size | 3.75um*3.75um | |
| Data bits | 12BIT | |
| Exposure mode | Rolling shutter | |
| HDR | Tertiary enhanced | |
| SE | Third order edge enhancement | |
| White balance | Manual/Auto | |
| Focus mode | Manual | |
| Output frame rate | 60fps | |
| Output mode | HDMI | |
| Output color | Colours/black and white | |
| Power output | 12V1A | |
| Fixed bracket system specifications | Focusing frame | Coarse moving focusing hand wheel,The focusing hand wheel is elastic and adjustable,Lift 0-105mm |
| Moment arm bracket | 50*60*300mm | |
| Working platform | 320*285*32mm | |
| Lighting System Specifications | External light source | LED ring light,input voltage:AV100-240V wide voltage,Adjustable brightness |
| Bottom lighting system(Optional) | Square parallel light | LED Square light,input voltage:AV100-240V wide voltage,Adjustable brightness |
| Video display system specifications | Screen size | 23.8 |
| Screen ratio | 16:9 | |
Measurement functions | Picture format | BMP/JPG/PNG |
| Saving mode | U dish | |
| Identification function | point coordinates,cross curve,coordinate line,Text annotation | |
| length measurement | straight line,broken line,curve,circular arc,Parallel lines from,DimPL | |
| Center distance measurement | Two round focal point,Three focal point round. | |
| geometrical measurement | line length,Line spacing,Circle radius,concentric circles. | |
| geometric area | Circular area,square,triangle,polygon | |
| Angle measurement | inner angle,Exterior Angle measurement | |
| Image rotation | Vertical rotation,Horizontal rotation | |
| Other functions | Text Editing,notes |
