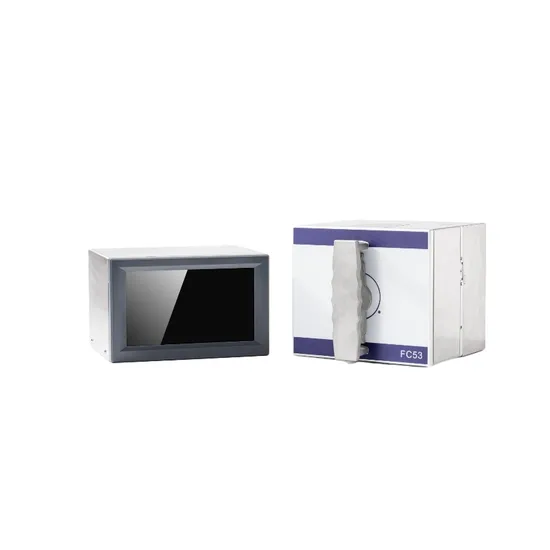

53mm HPRT FC53 Tto Thermal Transfer Overprinter Date Coding Printer for Pharmacy Plastic Bags

Product Description

FC53-Lc Thermal Transfer Overprinting TTO Printer
HPRT label and soft packaging code solutions will help you create more value.
FC53/32 is suitable for food, medicine, daily chemical, household paper and other types of soft packaging variable code (including traceability code, barcode) printing. We regard reducing total cost of ownership (TCO) as the key to TTO design, and FC53/32 goes with HPRT original ribbon to ensure the best print effect and lower use cost.
Thermal Transfer Overprinting• Cost saving• Optimized operation• Highly reliable
• Environment friendly• Effective printing• Optimized ribbon usage
Send InquiryHPRT Tto FC53 is a high-quality Thermal Transfer Overprinter for food packaging production lines. It offers efficient date, QR code, and logo printing with automatic operation.
thermal transfer overprinter (TTO Printer)Customized Imported corner edge print head improve printing efficiency.HPRT tto printer has an intelligent TpH protection function by the format designer software,when printing,it can avoid the demanged heating, elements,which prolongs the services life of print head.
Thermal Transfer Overprinting (TTO) is a technology that creates messages in resolutions up to 203dpi 300dpi by pushing a ribbon into contact with a substrate using a printhead.The printhead is made up of a series of miniature print elements under a ceramic coating and a layer on the thermal printer ribbon is covered with a coloured wax and/or resin mixture. The mixture on the ribbon melts as small areas of it come into contact with the elements that are heated, this transfers and adheres colour to the surface of the substrate as it moves under the printhead.Thermal transfer printers, functional in either continuous or intermittent printing modes, can print at high-resolution print quality and on fast moving production lines. They can print a series of messages, including pricing, date and time coding, barcodes, QR codes, logos, ingredients' lists or even marketing messages.
Customer who have recently purchased our TTO printer:
Visit TTO Printer Customer:
2024 Exhibition:
Helpful Linkfor instant conmunication,pls click herefor our catalogue,pls click herefor our other products,pls click here
Specification:

Structure	All-metal structure
Printing Method	Thermal Transfer Printing
Resolution	300dpi (12 dots/mm)
Printing Speed	40-600mm/s
Printing Width	53mm
Print Area	53mm * 75mm (Intermittent) 53mm * 100mm (Continous)
CPU	32-bit RSIC
Flash Memory	8MB (minimun)
Dynamic Memory	16MB(minumum)
Real-time Clock Function	STD (Battery Lifespan: min 3 years)
Sensor	Ribbon Tension Detection Thermal Head Position Detection Cover Open Detection TPH over Temperature Detection Ribbon Break Detection
Soft Package Detection	Electromagnetic Induction or Synchronizer
Soft Package Material	PVDC, PET, PE, NY, CPP, OPP, BOPP, BOPET, BOPA, CPP, PE,VMPET, VMCPP and other films and composite films
Capacity for Ribbon Loading	1 "mandrel with a maximum length of 1100 meters
Ribbon Type	Type: Wax / Resin-based width: 20 mm (0.79 ") to 55 mm (2.17")
Ribbon Saving	Support interlaced, radial, multiple print signals, digital ribbon saving printing, ribbon back and other ribbon saving modes; The minimum ribbon interval between two lines of printing is not more than 0.5mm
Air Pressure Supply	Max. 6 bar/90 psi
Airflow Consumption	As low as 4 ml / print at 2.5 bar
Print Density Level	Level 31
USB Interface	STD, 1 port, type B connector, USB device 2.0
USB HOST	STD, 1USB disk connection port ; USB Host 2.0, automatic detection and setting of connections
Serial Port	STD 1 port, female D-SUB 9-pin connectorDefault 9600, 8/N/1, variable baud rate and format
Ethernet Interface	STD 1 port, RJ-45 connector, IEEE802.3 10/100BASE-T
Hardware Interface Port	Input: "Print Start" and a configurable input ; Outputs: fault, warning and 2 configurable outputs
Power Supply	Internal switching power supply module, I / P: AC90V-264V, 47/63 Hz; 150 VA
Software	HPRT Format Designer
Certification	CCC
Environmental Conditions	Operation: 0 to 40 ° C @ humidity 10% to 90% non-condensing Storage: -40 to 60 ° C @ humidity 10% to 90% non-condensing
Machine Dimension	Printer: height less than 190 mm, width less than 220 mm, depth less than 236 mm Controller: height less than 170 mm, width less than 263 mm, depth less than 190 mm
Machine Weight	Printer: less than 8 kg ;Controller: less than 5 kg
Warranty	Printer: 3 years ; Controller: 3 years ; Thermal head: 6 months or 50 KM;Platen: 5 years

Application:
Packing-TTO Printer
Customer-Choose Us
Other TTO Printer for you choose:Factory Price HPRT DC24A DC24A-E TTO Code Thermal Transfer Printer For VFFS /HFFS Vertical Filling Pillow Packaging Machine
DC24A is an enhanced smart TTO product designed for the leapfrogupgrade of traditional TTO.In addition to use it to easily complete theprinting of production date, shelf life, series number, batch numbertime (accurate to seconds), etc., you can also print any lD code,2Dcode, product traceability code, logo, graphics and other content asneeded.
Send inquiryHPRT Hot sale FC32 TTO Printer Replace Videojet 6230 Thermal Transfer Overprinter 32mm Batch Coding Machine Introducing our 32mm Width Coding Machine Printer with High Resolution TTO Thermal Transfer Overprinter. This innovative technology allows for printing messages in resolutions up to 203dpi or 300dpi by utilizing a printhead that pushes a ribbon into contact with the substrate.
The printhead consists of miniature print elements under a ceramic coating, while the thermal printer ribbon is coated with a colored wax and/or resin mixture. As the heated elements come into contact with the ribbon, the mixture melts and transfers color to the substrate, creating high-quality prints on fast-moving production lines.
Send inquiry
