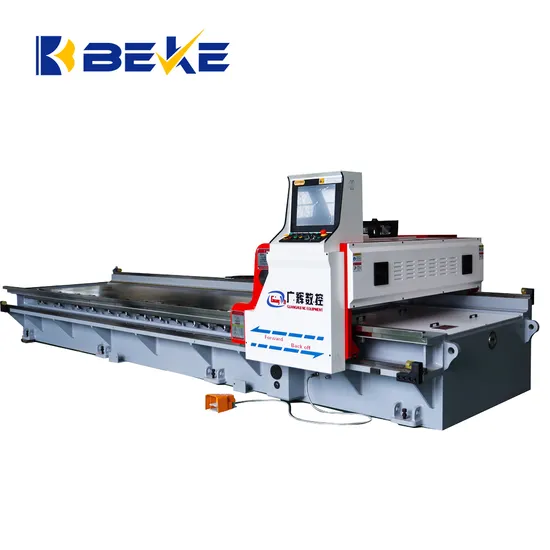

Nanjing Beke CNC Sheet Metal V Shape Grooving Machine
| US$19,800.00-25,800.00 | 1 set (MOQ) |
Basic Info.
Model NO.
GNKP-1250/4000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC Gantry Type Sheet Metal Plate Groovi
Gnkp 1250/4000
Max Width of Metal Sheet
1250mm
Max Length of Metal Sheet
4000mm
Max Height of Metal Sheet
4.5mm
Min Height of Metal Sheet
0.5mm
Min Distance Between V-Groove
8mm
Cutting Degree
75m/Min(Max)
Main Motor Power
5.5kw
Pressure of Hydraulic System
7-9MPa
Transport Package
Plastic Film
Specification
6100x2300x1700mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Packaging & Delivery
Package Size
6100.00cm * 2300.00cm * 1700.00cm
Package Gross Weight
8570.000kg
Product Description
| GNVP Series V grooving machine introduction |
| In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc. The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending. |
| Japan Abel CNC Control System |
| Very stable and easy operation. Support 4 axis linkage. Minimum setting unit 0.01mm. PLC breaking function, fixed scan time 10ms. Each axis has feedback function for displaying axis position and avoiding allision. |
| Japan's Mitsubishi servo motor |
| Stable and high accuracy 5.5KW |
| Tool |
| It can be white steel blade and alloy blade. For thick sheet we recommend white steel plate. |
| Taiwan HIWIN or Japan THK guide rail. |
| Brand guide rail guarantees high moving precision. |
| Hydraulic type clamping |
| We call it Y2 axis, moving along with Y1, for quick and easy clamping of metal sheet. |
| Pneumatic blowing system. |
| Automatic air blowing system to blow away the debris on the table |
