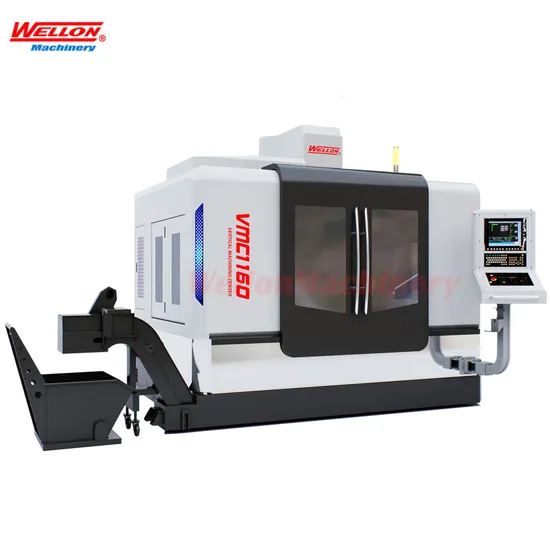

High Precision CNC Vertical Machining Center Vmc850 Vmc855 Vmc1160 Vmc1270 Vmc1370

Product Description

Product Description

Hot Sale Vertical Machining Center VMC850 VMC855 VMC1160 VMC1270 VMC1370


Detailed Photos
Product Parameters

1. Resin sand casting;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Taiwan production pneumatic cylinder;
4. Taiwan ATC, carousel type and disc type are available as option;
5. Headstock balancing system have heavy casting or nitrogen balance system as option;
6. Full enclosed cover;
7. Rigid tapping;
8. Work lamp;
9. USB and Internet interface;
10. Manual pulse generator (MPG);
11. Centralized automatic lubrication system.
12. Cooling system.
13. Heat exchanger for electrical cabinet ;
14. Leveling blocks & bolts;
15. Toolbox and tools;
Technical Parameter:

Item	VMC850	VMC855	VMC1160	VMC1270	VMC1370
X axis travel	800	800	1100	1200	1300
Y axis travel	500	550	600	700	700
Z axis travel	500	550	600	600	700
Spindle nose to worktable	150-650	150-650	120-720	150-800	110-810
Spindle center to column	550	550	650	710	750
Leadscrew diameter X,Y,Z	Φ40	Φ40	Φ40	Φ40	Φ45
Linear guideway width X,Y,Z	35/35/35 (Roller)	35/45/45 (Roller)	45/45/45 (Roller)	45/55/45	45/45/45
Worktable Length	1000	1000	1200	1300	1400
Worktable width	500	550	600	700	700
Max loading capacity	500	600	800	1000	1200
T-slots(NO./width/pitch)	5*18*90	5*18*90	5*18*100	7*18*100	5*18*110
Spindle taper	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150
Spindle speed	8000	8000	8000	8000	8000
Main motor power	7.5/11	7.5/11	7.5/11	7.5/11	15/18.5
Fast moving speed (X/Y/Z)	36/36/30	36/36/30	36/36/30	36/36/24	30/30/24
Cutting speed	1-10000	1-10000	1-10000	1-10000	1-10000
Feed motor torque	12/12/22	12/12/22	22/22/22	22/22/22	37/37/37
Feed motor power	2.0/2.0/3.0	2.0/2.0/3.0	3.0/3.0/3.0	3.0/3.0/3.0	4.5/4.5/4.5
Capacity	Arm type 24	Arm type 24	Arm type 24	Arm 24	Arm 24
Max tool diameter	120	120	120	120	120
Max tool weight	8	8	8	8	8
Max tool length	300	300	300	300	300
Positioning accuracy	0.008	0.008	0.008	0.008	0.008
Repeat accuracy	0.005	0.005	0.005	0.005	0.005
Length	3000	3000	3300	3450	3800
Width	2300	2300	2400	2500	2560
Height	2900	2900	3000	3050	3200
Weight	4500	5400	6300	7300	9500

Standard accessories:
Mitsubishi M80 control system
Taiwan Spindle: 8000rpm
X/Y/Z axes: Mitsubishi servo drive motor
Main motor: Mitsubishi spindle motor
24 tools disc type magazine from Taiwan
USB +Ethernet interface
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Water gun
Air gun
Air conditioner in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from taiwan Hiwin
Optional accessories:
Direct driven spindle from Taiwan with 12000rpm
Spindle oil cooler
Spiral type chip conveyor
Nitrogen balance cylinder
Spindle center water spray 20bar
Spindle center water spray 30bar
BBT40 Spindle taper
SK40 Spindle taper
Tool probe,TS27R Renishaw
Workpiece measurement device OMP60 Renishaw
Oil Skimmer
