Duck/Fish/Chicken Small Animal Carcasses Crusher Bone/Meat Grinder Shredder

Product Description

Duck/Fish/Chicken Small Animal Carcasses Crusher Bone/Meat Grinder Shredder
Overview

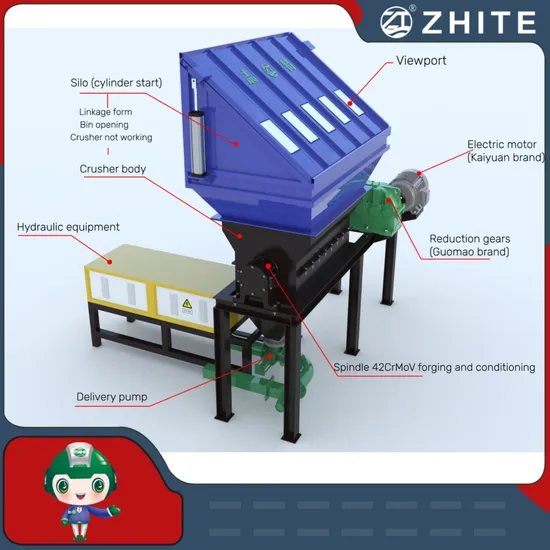

The animal carcass crusher is single-axis crusher, the single-axis crusher is mainly composed of sealed silo, crushing chamber, crushing knife shaft, power mechanism, frame, discharge bin, observation and access port and other components, single-axis crusher is widely used in dead pigs, dead cattle, dead chickens, rabbits and other sick animals crushing reduction treatment. The top of the crusher is equipped with automatic sealing silo, which can realize the closed crushing of sick and dead animals, and prevent the spilling of blood and odor; The bottom of the silo is a crushing chamber, and the tearing and cutting of the knife shaft will break the bodies of various sick and dead animals to about 50mm. The lower part of the crushing chamber is set up an outlet silo, and the outlet silo is connected with the discharge spiral or the feed pump, and the crushed materials are transported to the subsequent equipment for further harmless treatment.
Technical Parameters

Model	Rotor Diameter*Length(mm)	Inlet size(mm)	Capacity(t/h)	Max.Feed Weight(kg)	Power(kw)	Rotor speed(r/min.)	Overall size(mm)
ZT-DP-0410	Φ400*1000	1720*920	1-3	≤50	15	25	6500*1350*2600
ZT-DP-0412	Φ400*1200	1920*920	3-5	≤100	22	22	8000*1400*2800
ZT-DP-0615	Φ600*1500	2380*1520	5-8	≤150	37	20	9300*1500*2950
ZT-DP-0618	Φ600*1800	2680*1520	8-10	≤200	45	18	3450*1500*2950
ZT-DP-0818	Φ800*1800	2680*1720	10-20	≤300	55	15	3900*2070*4750
ZT-DP-0820	Φ800*2000	2880*1720	20-25	≤350	75	12	3900*2070*4750

All equipment produced by our company can customize according to customer's requirements.
Features
1.Unique crushing method, moving knife, fixed knife durable;
2.For animal skin more tough materials, using special tools, sharp and wear-resistant;
3.Special device is designed to prevent leather from winding the blade;
4.High power motor drive, high efficiency, low energy consumption;
5.Can be equipped with lifting device, direct automatic feeding, saving labor;
6.Can realize the whole PLC control, simple operation, low maintenance cost.
7.Self-protection measures. If the broken hard object exceeds the power requirement, turn it over twice and then break it again. If the hard object is not broken after two turns, the device will give an alarm.
Product pictures
Other Products
Customer Visit
FAQ
1.Are you a factory or trading company?
We are a company specializing in the production of various kinds of shredding machine, crusher, excrement and urine processor for the equipment manufacturers.
2. Samples are available?
Yes, the sample for your test quality.
3. The product test before shipping?
Yes, all the equipment before delivery to commissioning, there is no problem of equipment to the factory.
4. After sale service?
For most of the machines, the quality is guaranteed for one year since the date of shipment except wearing parts, we supply the on-line service for all the machines, and also supply the spare parts all the time with cost price, for some complicated machine or plant, we can send our engineer overseas too.
5. How do you guarantee I can receive the goods that ordered after make the payment?
Please be rest assured that you will receive the goods in time, we are a legally established company supervised by the government, and is registered in customs of China and China Chamber of International Commerce. Besides, we are the golden member of MADE IN China. COM and has been checked by the third party as the real and legal company.
6. How to make the payment?
Normally, when the order value is below USD10, 000, we accept the payment by T/T or Western Union or Cash, L/C will be accepted when the order value is over USD10, 000. For T/T, the customer can choose 100% in advance or 30% in advance, and pay the 70% balance before shipment.
7. I want to know more about your company and your products, how?
We will sent you a catalugue as well as a questionaire which covers your requiement. Your kindly reply about filling the questionaire will be greatly appreciated.
8.Where are you? Can we go to China and visit your factory?
Yes, of course. We are in Weifang, China. Welcome to our factory.
Factory pictures
WEIFANG ZHITE ENVIRONMENTAL PROTECTION TECHNOLOGY CO.,LTD.
Thank you for your attention to our products, if you want to know more information, please feel free to contact us, we sincerely provide you with the most satisfactory service!
