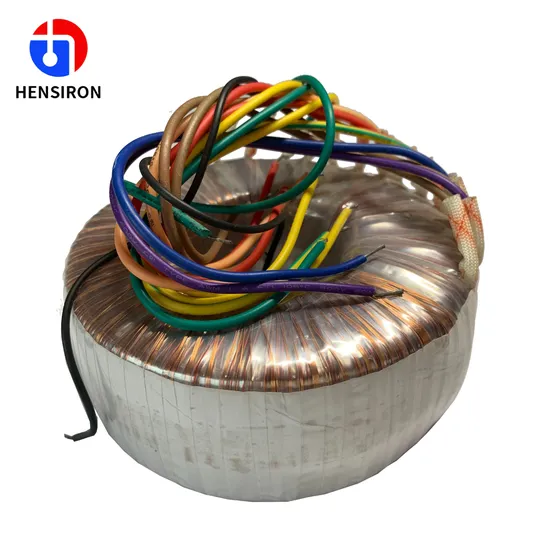

Small Volume 300W Low Frequency Iron Ring Core Toroidal Transformer 110V 220V 240V

Product Description

Product Description Toroidal transformer advantages:
1. The iron core has no air gap and stack vibration, which can effectively reduce noise;
2. Small magnetic leakage can effectively reduce interference and improve the signal -to -noise ratio of the equipment;
3. Small iron loss, extremely low vacuum loss, can effectively reduce standby loss,Improve equipment reliability;
4. High efficiency, product design does not need to consider extra power space and Cooling conditions;
5. Small volume, light weight, flexible and variable size. In the case of same sectional area, the outer diameter and height can be changed, and the installation is flexible.

RATED POWER	VOLTAGE ADJUSTMENT %	EFFICENCY %	DIMENSIONS		WEIGHT ( KG)
			HEIGHT	O.D.
25W	20%	73.0%	25mm	68mm	0.4 kg
30W	16.5%	76.6%	25mm	72mm	0.5 kg
40W	15.8%	80.2%	33mm	79mm	0.6 kg
50W	15.2%	82.4%	33mm	84mm	0.7 kg
60W	13.8%	83.5%	34mm	89mm	0.8 kg
80W	12.6%	84.7%	34mm	95mm	1.0 kg
100W	11.2%	86.5%	35mm	105mm	1.3 kg
120W	9.6%	87.3%	40mm	110mm	1.6 kg
150W	7.2%	88.1%	42mm	116mm	2.0 kg
160W	6.6%	88.6%	42mm	118mm	2.1 kg
200W	6.1%	89.7%	48mm	120mm	2.4 kg
250W	5.5%	90.3%	50mm	127mm	2.9 kg
300W	5.2%	91.7%	55mm	128mm	3.2 kg
400W	4.6%	93.8%	70mm	133mm	4.7 kg
500W	4.3%	94.6%	72mm	140mm	5.5 kg
600W	4.1%	95.0%	72mm	155mm	6.7 kg
800W	3.8%	95.1%	72mm	170	8.2 kg
1000W	3.3%	95.8%	78mm	180mm	10.1 kg
1200W	2.9%	96.2%	80mm	198mm	13.4 kg
1600W	2.8%	96.6%	86mm	210mm	16.0 kg
2000W	2.5%	96.9%	90mm	232mm	20.0 kg

Company Profile HENSIRON was founded in 2008. After more than ten years of development and growth, HENSIRON has a professional R& D team, excellent quality process control system, abundant flexible production experience, efficient customization service capabilities and international customers all over the world. Back to 2008, HENSIRON established a Research and Development Center for components, which opened up the business of external design and development of components.
With the accumulation and expansion of business, in order to meet the needs of international customers for customized production of high-quality products and of international customization services, HENSIRON has built two major production bases in Wuxi, Jiangsu Province, and Dongguan, Guangdong Province. In Changzhou City, Jiangsu Province, HENSIRON has set up international affairs′ service centers specially to meet international customization needs.
In terms of plant production management, HENSIRON has gradually implemented ISO 9001 quality assurance system standard, providing Industrial Frequency Transformer, intermediate frequency transformer, audio transformer, ultra-audio transformer and high frequency transformer, various frequency bands of electronic transformers and coils, common-mode inductors, filter inductors, UPS inductors, SMD inductors, SMT inductors, various custom inductors, bar inductors and other magnetic components, as well as various resistors and Load Banks etc. To all industries in the world.
Certifications The power transformers, audio transformers, pulse transformers, switching power transformers, transmission transformers, communication transformers, special transformers, encapsulated transformers, and various customized resistance and inductance units or components we provide are all authorized and certified, and our customers highly recognize and evaluate our product quality.
More Products We also provide industrial frequency transformer, intermediate frequency transformer, audio transformer, ultra-audio transformer and high frequency transformer, various frequency bands of electronic transformers and coils, common-mode inductors, filter inductors, UPS inductors, SMD inductors, SMT inductors, various custom inductors, bar inductors
→Any Special Customized Transformer, Please Click Here to Talk With Us !
Packaging & Shipping HENSIRON adheres to the business philosophy of "To Live with Trust, To Develop with Quality ". We, HENSIRON people, always firmly put product quality in the first place. We know that, only under the premise of guaranteeing product quality, HENSIRON can continue to grow and grow - -- the development of HENSIRON is always on the premise of guaranteeing quality.
Why Choose Us HENSIRON adheres to the business philosophy of "To Live with Trust, To Develop with Quality ". We, HENSIRON people, always firmly put product quality in the first place. We know that, only under the premise of guaranteeing product quality, HENSIRON can continue to grow and grow - -- the development of HENSIRON is always on the premise of guaranteeing quality. Over the years, core customers have highly recognized and evaluated the quality of power transformer, audio transformer, pulse transformer, switching power transformer, transmission transformer, communication transformer, special transformer, encapsulation transformer, various customized resistance and inductive unites or components provided by HENSIRON. With this trust and trust from customers, HENSIRON can survive and continue to grow.
Product Application With wide range of applications, toroidal transformers are used in various medium and high-quality audio equipment. Professional stage amplifier, public broadcast, testing instrument, medical device machinery, mechanical equipment, lighting industry, solar energy, photovoltaic power supply and other applications.
