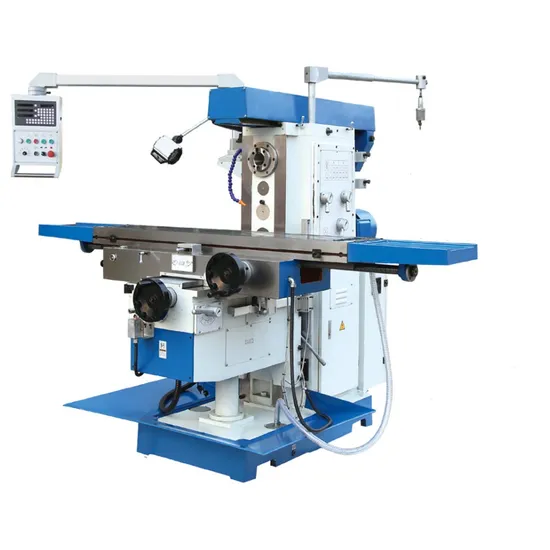

XL6036 Horizontal Milling Machine Tool
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6036
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionDRO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.
Product Parameters
| Specification | Unit | XL6036C | XL6036CL |
| Spindle taper | - | 7:24 ISO50 | |
| Distance bAtwAen spindle nosp and table | mm | 20-470 | |
| Distance from spindle axis to arm | mm | 175 | |
| Horiontal spindle speed range | 12steps 60~1800r.p.m | ||
| Table size | mm | 1325x360 | 1600x360 |
| Table travel(X/Y/Z) | mm | 1100/320/450 | 1300/320/450 |
| Table feed(X/Y/Z) | mm/min | 8 steps 30-750 / 20-500/ 15-375 | |
| Table rapid speed (X/Y/Z) | mm/min | 1200/800/600 | |
| T-slots(NO:/width/pitch) | mm | 3/18/80 | |
| Arm travel | mm | 500 | |
| Main motor power | kw | 5.5 | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Overall size | mm | 2245x2100x1870 | 2520x2100x 1870 |
| Net weight | kg | 2500 | 2550 |
RO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
RO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.
