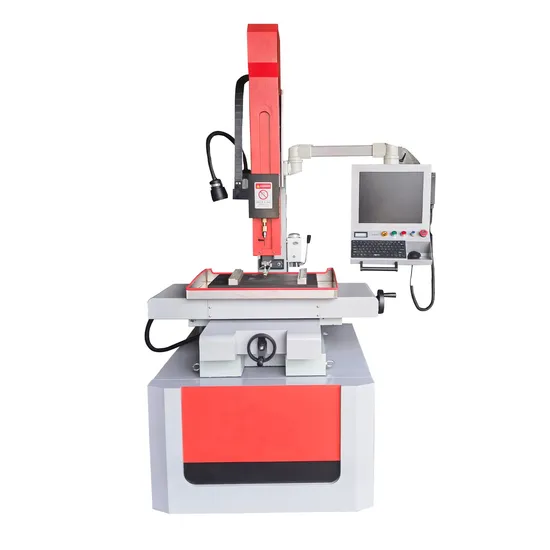

CNC Small Hole Drilling EDM Machine with Travel Size 350*450mm

Product Description

Scope of Application

It is suitable for processing small deep holes with a diameter of 0.15mm-3mm on various conductive materials such as stainless steel, hardened steel, copper, aluminum, and hard alloy. It can directly penetrate and process from irregular shaped surfaces such as inclined surfaces and curved surfaces.
Mainly used for the processing of small and micro holes on the mold and the threading hole, the spinneret hole of the chemical fiber spinneret and the spinneret plate, the group holes of the filter plate and the sieve plate, the cooling hole of the blade of the discharge machine and the cylinder body, hydraulic and pneumatic The oil and air passage holes of the valve body, etc.; it can also be used to etch away the drill bits and taps that are broken in the workpiece without damaging the original holes or threads.
Technical data

ITEM	NAME	DATA
1	Model	CNC450
2	X/Y work table size	380*500mm
3	X/Y travel size	350*450mm
4	Z axis (spindle) travel size	450mm
5	Machine size	1250*1400*2100 mm
6	W Spindle travel	360 mm
7	The maximum space between the guider and worktable	360 mm
8	Z-axis Max Adjust Speed	1500mm/min
9	Circumgyrate Head(C axis)Rev	0-200rpm adjustable
10	The maximum carrying capacity of the work table	300 kg
11	Wire tube dia	Ø0.15-Ø3.0 mm
12	Maximum processing current	30 A
13	Input max power	4.6 (KVA)
14	Power supply voltage	(415V 3P 50Hz)
15	Pulse Width	0-9 file adjustable (us)
16	Continuously adjustable pulse interval	1:1-1:8(Pulse width: between pulses)
17	Machine tool input maximum power	4.5(KVA)
18	Max drilling speed	30-60 mm/min (according to the workpiece material)
19	Max drilling thickness	400 mm
20	Positioning accuracy	XY≤ ±0.02 mm (300mm)
21	Re-positioning accuracy	XY≤ ±0.02 mm (300mm)
22	Moving speed XY(mm/min)	≤1000
23	The minimum movement equivalent of the work table	0.001 mm
24	Working fluid	pure water
25	Working fluid filtration method	shallow gap
26	Working fluid tank capacity	25L
27	Machine weight	750 kg

ITEM	NAME	DATA
1	Capacity	120L
2	Filtration level	CLASS 3
3	Filter method	Paper filter
4	Quantity of filter	1
5	Material	304 stainless
6	Motor power	250W
7	Working fluid pressure	0.8kg
8	Filtration accuracy	5 u
9	Weight	45kg

Features and functions
1.Bed structure: box-shaped design and careful rib support. The carriage and column are made of HT200 castings. The bed is thick, rigid, and unchanged.
2.Linear guide rail: Taiwan linear guide rail, full-stroke support design, precision maintenance is more durable.
3.Precision ball screw: X/Y/Z three-axis is equipped with Taiwan Dinghan precision ball screw.
4.X, Y motors: driven by subdivided hybrid servo motors, further improving the machining accuracy of the machine tool, advanced non-damping protection, no need for backlash compensation; preventing the machine tool from crawling.
5.Z-axis motor: Using subdivision stepping motor (hybrid servo), the lifting speed is fast and the sensitivity is high. The whole stroke only takes about 10 seconds, which greatly reduces the waiting time and greatly improves the efficiency.
6.The stroke of the W-axis head adopts electric lifting.
7.Convenient workbench: The mobile double-slat workbench bracket fixture is conducive to workpiece clamping and reduces power consumption.
8.Workbench: Grade 0 high-precision marble is used.
9.Lubrication system: Convenient oil lubrication method, safe and reliable, maintains sufficient lubrication for mechanical movement, better maintains the accuracy of the machine tool and prolongs the service life of the machine tool.
10.National patented rotary head: The integrated design of the motor rotary head adopts carbide tungsten steel grinding discs and multiple sealing and waterproof technologies, and is connected with the chuck with a taper sleeve to ensure the concentricity of the chuck rotation.
11.The maximum stroke of the Z axis is 400mm, and a long electrode of 500mm can be clamped at one time, and the waste of the electrode tube is low.
12.Shanghai Jiaotong University control system: adopts linux operating system, runs fast, and can process massive data at the same time. The coded signal realizes the management of CNC process database files, CAD, 3B codes and other project files.
13.Control host: (1) Sufficient hardware configuration inside the industrial control computer: it can be effectively realized, and the programming and control can be completed in one time-sharing; the processing track can be tracked and displayed in real time. (2) The performance of the host is stable, and it can work continuously for 365 days. And it is equipped with RS232 interface, USB interface, network card interface, keyboard and mouse.
14.Anti-interference touch industrial control display screen with high resolution and anti-electromagnetic interference. During the processing, it can clearly track and display the processing track, completely solving the phenomenon of blurred screen, shaking screen and black screen.
15.Circuit system: modular design, machine tool electrical appliances, high-frequency power supply, numerical control system, scientific integration. The whole machine has a compact structure, reasonable layout, strong anti-interference, good reliability, environmental protection, energy saving, and ergonomics normative, emphasizing easy humanization standards.
16.Pulse power supply: high performance, high power, effective realization of high efficiency, micro-hole processing, and efficient processing of various types of die steel, aluminum, copper, aluminum alloy, titanium alloy, hard alloy, conductive ceramics, superconducting heat material.
17.Electronic control testing: all components of the system control board are strictly screened for aging. Full load 40ºC, continuous 100 hours; impact load 50ºC, intermittent 100 hours.
18.Digital high frequency replaces traditional analog high frequency, which is more accurate; PWM dedicated pulse output port, canceling the dial switch, more stable; high frequency soft start function, no burr on the processed surface.
19.The machining hole information system entered by the user is saved in the storage medium of the system in the form of a file, so that the user can use it multiple times to avoid frequent input after turning off the power. And it can save multiple processing hole information, and can re-edit and save the original processing.
20.For the processing of multiple holes, the CNC system can add hole information in two ways: (1). Add hole information one by one, which is suitable for adding scattered and irregularly distributed holes. (2). The formula adds hole information, which is suitable for hole information with certain distribution rules. Hole information can be changed, added, deleted at any time according to processing needs, and the processing sequence of holes can be adjusted.
