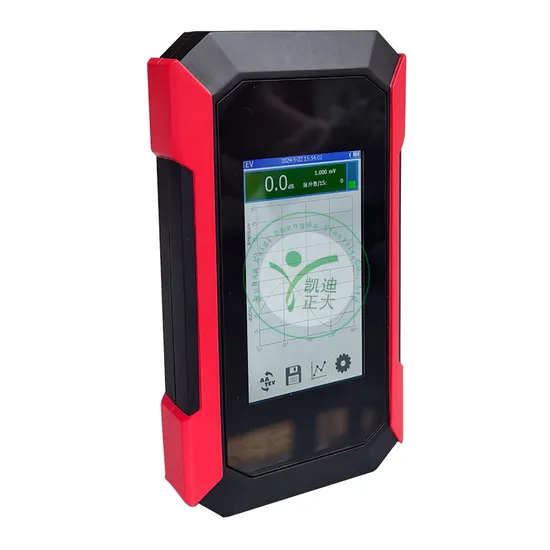

Handheld Pd Tester Partial Discharge Detector for High Voltage Electrical Equipment (cable/transformer /gis)
| US$499.00-8,999.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
KDJE
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Type
Universal Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Dynamic Load
Display
Needle
Control
Computer Control
Weight
0-100Kg
Power Source
AC220V
Oil Cylinder Position
Under
Connector
USB Port (Including Charger Input)
Temperature
-20~50ºC
Memory Card
16g (64G as Standard Configuration)
Sampling Accuracy
12 Bits
Synchronization Mode
Domestic Synchronization
Customized Support
OEM, ODM, Obm, Software Reengineering
Working Time
Approximately 12 Hours
Humidity
Relative Humidity 20%~85%
Charger
DC 5V/3A
Built-in Battery
3.7V/1000mAh Lithium Battery
Power
Electronic
Transport Package
Box
Specification
25*28*40cm
Trademark
KDZD
Origin
Hubei, China
HS Code
9030332000
Production Capacity
2500 Pieces
Packaging & Delivery
Package Size
21.00cm * 10.00cm * 3.50cm
Package Gross Weight
0.400kg
Product Description
Product Features 1. Configure different sensors to realize partial discharge detection of various high-voltage electrical equipment; 2. Provide multiple discharge modes such as time domain waveform, PRPD, PRPS, etc. to realize the analysis of different discharge types; 3. Humanized man-machine interface facilitates data management of different equipment; 4. Built-in ultrasonic sensor and transient ground voltage (hereinafter referred to as TEV) sensor, which can be connected to special sensors such as transformers, GIS, overhead lines, cables, etc. 5. The non-invasive detection method does not require power off during the test, nor does it require the configuration of additional high-voltage sources, which is more convenient to use than traditional pulse partial discharge detectors; 6. The test bandwidth range is 30kHz~2.0GHZ, which is suitable for detection principles of various frequency bands.| TEV Measurement | |
| Measurement Range | 0dB~60dB |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Maximum pulse per cycle | 1400 |
| Measurement frequency band | 3-100MHz |
| AE Measurement | |
| Measurement Range | 0dB~60dB |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Frequency Range | 20~200kHz |
| AA, AA1, AA2 Measurement | |
| measuring range | 0dB~60dB |
| Resolution | 1dB |
| Accuracy | ±1dB |
| Sensor center frequency | 40 kHz |
| UHF Measurement | |
| Detection Band | 300~2000MHz |
| Measurement Range | 0dB~60dB |
| Sensitivity | <1dB |
| Sensor Bandwidth | 300~2000MHz |
| HFCT Measurement | |
| Sensor transmission impedance | 5mV/mA |
| Detection frequency | 1~30MHz |
| Sensitivity | ≤50pC |
| Hardware | |
| Volume and weight | 210*100*35(mm) 0.4KG(host) |
