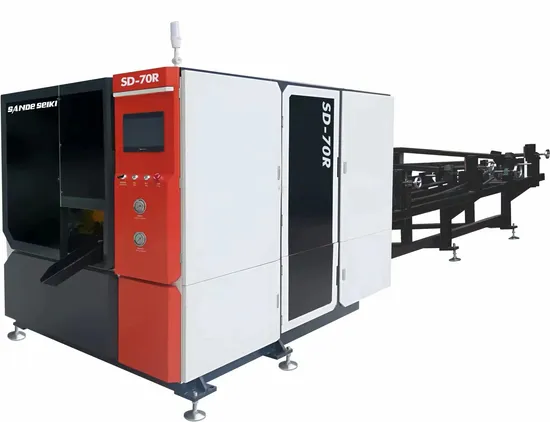

High Speed Metal Cutting Circualr Saw SD-70r
| US$30,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SD-70R
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
High Speed Cutting
CNC
Transport Package
Plywood Case
Specification
SET
Trademark
SANDE
Origin
Zhejiang, China
HS Code
8461500090
Production Capacity
30sets/Month
Product Description
We Guanbao Industrial Co., Ltd. is majoring in band saw machine and circular saw manufctuering. Over 20 years production history, we will surely supply you high quality goods with competitive price. We also have our design team, we can do OEM for you if need.CNC High Speed Metal Circular Saw Machine
SD-70R Technical Data
| 1 | Cutting capacity | Round bar | 15mm--75mm |
| Angle material | 15mm--55mm | ||
| Round tube | 15mm--75mm | ||
| Square tube | 15mm-55mm | ||
| Remnant material length | 70mm+a(a means not enough to cut the length of workpiece) | ||
| 2 | Head Spindle | ||
| Application of TCT tungsten carbide circular saw blade | Φ285x2.0mm | ||
| Rotation number of cutter | 50-160rpm(stepless speed regulation) | ||
| Spindle driving motor | 7.5KW/4P variable frequency motor | ||
| Tool gap compensation device | Magnetic powder brake | ||
| Tool shock proof parallel block | Tungsten carbide | ||
| Tool chip cleaner | Round steel brush | ||
| Cut-off feeding way | Rock type/AC servo motor | ||
| Clamping way | Hydraulic/ Horizontal and vertical each one | ||
| 3 | Sizing Feeding (GFC) mechanism | ||
| Driving way | AC Servo motor/Precision ball screw | ||
| Clamping mode | Horizontal hydraulic | ||
| Front end cutting length | 10-99mm | ||
| Single feeding cutlength | 6-730mm(single time)/9999mm(multi-times) | ||
| 4 | Automatic feeding device | ||
| Material length | 3000-6000mm | ||
| Material placing area width | 980mm | ||
| Feeding way | Hydraulic lifting material | ||
| Angle material slip device | Optional | ||
| 5 | Hydraulic device | ||
| Driving motor | 3.75KW(5HP)/4P | ||
| Driving pressure | 65kg/cm2(6.5Mpa) | ||
| Oil capacity | 90 L | ||
| 6 | Air pressure device | ||
| Working air pressure | 4-6kg/cm2(55-85psi) | ||
| 7 | Machine size and weight | ||
| Size(LxWxH) | 7100*2200*1880 | ||
| Weight | 3750kgs | ||
| 8 | Equipment & device | ||
| Automatic lubrication system | Timing forced oil | ||
| Automatic distributor | Pneumatic reciprocating | ||
| Chip conveyor | Chain plate | ||
| Oil mist cooling device | Oil mist lubrication sprayer | ||
| Cutting fluid cooling device | 0.09kw/2p/cycle cooling | ||
| Working lamp | LED/ waterproof and dust-proof | ||
Machine picture:
Oil mist system(optional)
The product images shown are for illustration purpose only and may not be an exact representation of the product.
We reserve the right to change product images and specifications at any time without notice.
The product images shown are for illustration purpose only and may not be an exact representation of the product.
We reserve the right to change product images and specifications at any time without notice.
