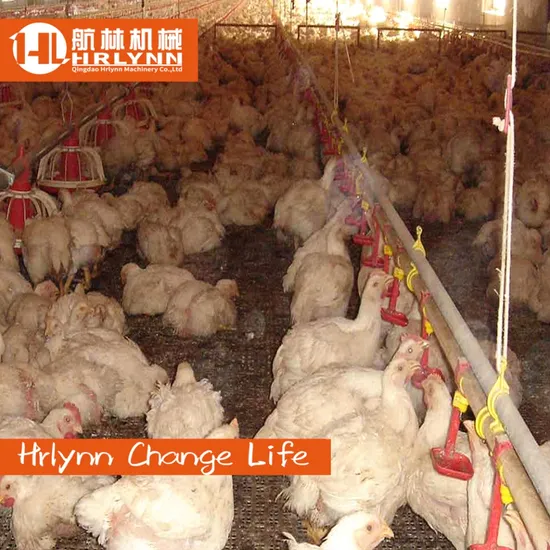

Good Price Automatic Broiler Farming System Poultry Farm Equipment for Chicken

Product Description

We provide complete automatic equipment for poultry house. The System include:
1. Automatic pan feeding line/ pan feeder
2. Automatic nipple drinking line/ nipple drinker
3. Feed filling silo
4. Cooling pad system
5. Ventilation fan system
6. Heating system
7. Air inlet system
8. Automatic environment control system
9. Manure automatic cleaning system
10. Plastic slats floor for poultry and livestock

If you tell us the poultry house length and width, how many birds you farm, we could provide you a design scheme and complete quotation sheet;
If you tell us your purchased quantity for single products, we could provide you a best price based on your order quantity;

1. The Automatic pan feeding line system / pan feeder
(1). The pan feeding line include:
The pan feeder / galvanized pipe / feed auger / feed bin / drive motor / feed sensor / The winch / other parts
(2). The pan feeder : Made by copolymerization PP (engineering plastics), low fat soluble, plus ourself patent nostrum, to keep best tenacity and uvioresistant.
(3). Tell us your chicken house length and width, we could design how many feeding and drinking lines you need.
(4). Freewill adjust feeding level,keep feed distribution uniform and quickly.
(5).All ages of broiler, from one day chick to adult chicken
(6). All parts along international standard.

Pan Feeding Line Components
Galvanized feed pipe	3 meter/ set, Φ45 feed pipe ,galvanizing weight 275g/m2
feed auger	Φ36 feed auger
Broiler feeder pan(with end pan )	14 grids,330mm diameter,Patent protect product
Driver Motor with reducer ; auto switch	0.75Kw/3Pha/50Hz/380V, can custom

2. The automatic nipple drinking line system / nipple drinker
(1). The nipple drinking line system include:
the nipple drinker with drip cup / the PVC drinking pipe / the galvanized bearing pipe / Pressure regulator / the filter / the backlash unit / the winch / other parts
(2). The material :
the nipple made by 304 stainless steel
the drinker body made by ABS engineering plastics
the drip cup made by copolymerization PP
the drinking pipe made by PVC
(3).drink from 360 degrees.
(4). use for all ages poultry.
(5).easy to install and self-clean, provide big flow cleaning water.
3. The feed silo and hopper system
(1). The feed silo capacity from 2 Ton to 35 Ton size.
(2). The feed silo made by hot galvanized or fiberglass.
(3). One silo/ hopper could provide feed to two poultry house at same time.
(4). Top project design and durable body, prevent the rain and snow influence.
4. Cooling pad system (1). Type 7090 / type 5090 / Type 6090 / Type 7060
(2). The height / width / thickness , all size we have. like 1800mm*600mm*150mm / 1500mm*600mm*100mm.
(3). Goldenest have branch factory to produce cooling pad, we are the biggest manufacturer in Shandong Province of China.
(4). The cooling pad made by imported fiber paper, pure glue.
(5). keep 8-10 year using life.
(6). Also have aluminium frame , water pump and pipe to provide.
5. Ventilation fans system
(1). Kinds of size and type.
50' Butterfly Cone fan / 50' and 36' Centrifugal fan / Hammer fan
(2). The technology standard along international.
6. Heating system for poultry house

(1). Kinds of type to choose:
gas heater / electric heater / cowper stove
(2). The technology standard along international.
(3). From the French brand.Agent in China.
7. The air inlet system
(1). The plastic air inlet size is 270mm*560mm, usually we suggest 3m distance in side wall.
(2). Could choose automatic or manual control open and close.

8. The automatic environment control system
(1). T607 and T616 .
(2). Environment controller / control electric box / temperature and humidity sensor / alarm device .
(3). Automatic control the cooling , the fan, the air inlet , keep the poultry house comfortable environment.

9. The automatic manure cleaning system
(1). Could design and custom along your poultry house width and layout.
(2). Include the cleaning scraper / the drive motor / the corner / the rope .
(3). One motor could drive 2 scraper to work at same time.

10. The plastic slats floor
1. The material
Made by 100% raw material, plus ourself patent nostrum, to keep best tenacity and uvioresistant, high-duty and resist corrosion.
2. There are four type and size :
(1). 1200mm*500mm*40mm / hole size is 25*20mm / weight is 2.2kg
(2). 1000mm*500mm*40mm / hole size is 26*16mm / weight is 2.38kg
3. Keep good leakage dung rate as the rational hole design.
4. The support leg could adjust height, the triangle beam could custom length along you.
5. Warranty of 20 years using life.

FAQ
Q. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q. What is your terms of delivery?
A: FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
If you can't find the datas you need, pls send us your performance requirements,
we will provide you customized design .
