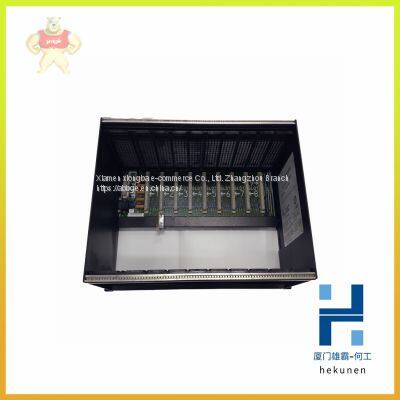

IC697CHS770 GE Redundant rack automation equipment

Product Details

Product Description

Product Description
IC697CHS770 GE Redundant rack automation equipment
IC697CHS770 GE Redundant rack automation equipment
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
Features

Accepts VME modules which require 0.8” spacing

Accepts all IC697 PLC module types, and IC687 (VME) I/O
and Communications module types

Rear mount rack mounts in a 10” (254 mm) deep enclosure

Front mount rack mounts in a standard 19” (483 mm) rack

Accepts plug-in AC/DC and DC IC697 power supplies, or can
use external supply (Power Supply Adaptor module required)

Provision for two rack operation from single power supply

Provision for power supply for high-current configurations

Optional fan assembly (for high-power modules)
Functions
The IC697 Programmable Logic Controller Redundant
Rack can be used for VME modules, and all IC697
configurations, including redundancy applications
(requires IC687 Redundancy Communications Module
and Bus Transmitter Module). This rack has two Power
Supply slots and 12 backplane slots divided into two
separate sections, each having a Power Supply slot and 6
backplane slots. The Redundant rack is designed to
provide easy integration of 3rd party VME modules into
an IC697 PLC system. Integration of 3rd Party VME
modules must be in accordance with guidelines which
are described in the User’s Guide to Integration of 3rd
Party VME Modules.
Backplane connectors are spaced on 0.8 inch centers to accommodate VME modules. IC697 modules each use two of
these slots. Standard IC697 racks have slots spaced on 1.6
inch centers for IC697 modules.
