New Fire Fighting Truck Price 8X4 6X4 6X6 4X4 Airport Diesel Heavy Duty Small Electric Isuzu Giga HOWO Man Engine Water Tank Price Guangdong China

Product Description

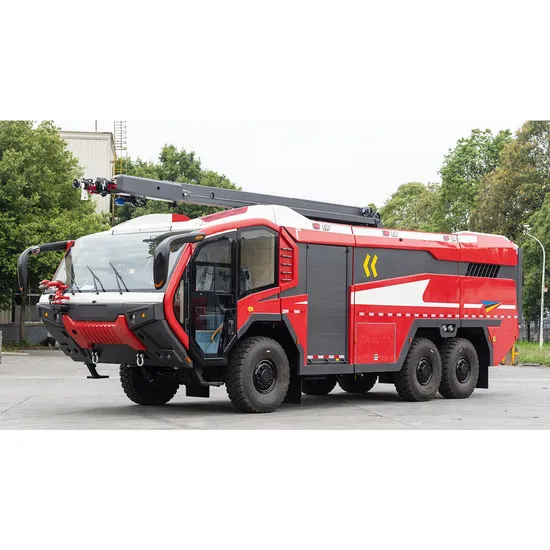

Product Description 1. FRESIA Airport Fire Truck
This vehicle is a special fire-fighting vehicle for the airport. It has strong power and excellent road passing ability. It can arrive safely and quickly for fire-fighting and rescue.The detailed parameters are as follows.
2. The Whole Fire Truck's Parameters

No.	Main Items	Technical Parameters
2.1	Model	SXF5360GXFJX120/F-Attack
2.2	Overall Dimension	11700mm×3000mm×3850mm
2.3	Full Load Weight	39000kgs
2.4	Number of the Crew	5 (include driver)
2.5	Max. Speed	115km/h
2.6	Capacity	Front mounted monitor 20L/s, roof mounted monitor 80L/s
2.7	Fire pump flow rate	100L/s @ 10bar
2.8	Fire monitor	Front mounted monitor 20L/s, roof mounted monitor 80L/s
2.9	Painting	Fire Red

3. Chassis
Manufacturer:Italy Fresia Model: Fresia F800 Drive type: 6*6 Wheelbase: 4800mm+1400mm Rated power: 566(kW/rpm) Engine type: V8 4. Superstructure / Upper Body

No.	Main Items	Technical Parameters
4.1	Cabin
4.1.1	Structure	Single row cabin with 2 doors
4.1.2	Seats	5 seats with 3-point safety belt
4.2	Standardized Sub-frame
4.2.1	Material	High-strength rectangular tube made of special steel
4.2.2	Performance	The liquid tank and the sub-frame are connected by elastic connecting seats
4.3	Compartment
4.3.1	Material	High-strength aluminum alloy profiles
4.3.2	Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
4.4	Roller Shutter Door
4.4.1	Material	Aluminum alloy profiles with anodized surface
4.4.2	Structure	With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.
4.4	Superstructure Electric Appliance
4.4.1	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
4.4.2	Strobe Light	Mounted on the both sides of the compartment
4.4.3	External Lighting	LED lights are mounted on the both sides of the compartment
4.4.4	Roof Lighting	LED lights are mounted on the inside of the roof
4.4.5	Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals

5. Fire Extinguishing System 5.1 Fire Pump
Flow Rate: 100L/s @ 10bar Priming Manner: Automatic Suction Height: 7m Priming Time: ≤80s Location: mid-mounted 5.2 Fire Monitor
Flow Rate: 80L/s @ 10bar Shoot Range: Water ≥ 80 m, Foam ≥ 75m Location: top of boom Control Manner: Electric remote control Horizontal Rotation Angle 0°~330° Pitch Rotation Angle: -15°~60° 5.3 Liquid Tank
Capacity: 12000L water, 1500L foam Material: PP composite material and Never Rust. Structure: Two Tank Manhole; Two Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves. 5.4 Dry powder system
Dry powder volume: 250kg 5.5 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as one-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
Company Profile CXFIRE, established in 1963, is the biggest fire trucks manufacturer in China with more than 60 years experience. The main manufacturing base is located in Chengdu of Sichuan Province with an area of 200,000 square meters and 600 staff members. More than 2000 units fire trucks and special vehicles are produced and sold every year.
CXFIRE has complete products system, including hundreds of fire trucks, fire equipment, fire fighting robots and other special vehicles. CXFIRE and its main products have obtained ISO, CCC, TUV, CE, EN and NFPA certifications.
CXFIRE products sell all over the world, including Asia, Middle East, Africa, Europe and America. CXFIRE has complete sales networks and after-sales service stations in global markets.
Technical & Process Advantages 1. Complete Aluminum Compartment and Never Rust. The compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.
2. High-Quality PP Composite Material Liquid Tank and Never Rust. PP is a special plate made of polymer composite materials to create a liquid tank for fire truck. It has the advantages of high strength, impact resistance, low temperature resistance and corrosion resistance.
3. Modular Control System. The control system adopts PLC intelligent program design and full electronic control operation. Different control program modules are available to choose according to the vehicle configuration. With waterproof and dustproof design, the protection level can reach IP56 or higher.
4. Modular Standard Parts. Water pumps, fire monitors, aluminum roller shutter doors, storage racks and pipelines are all manufactured by CXFIRE with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.
