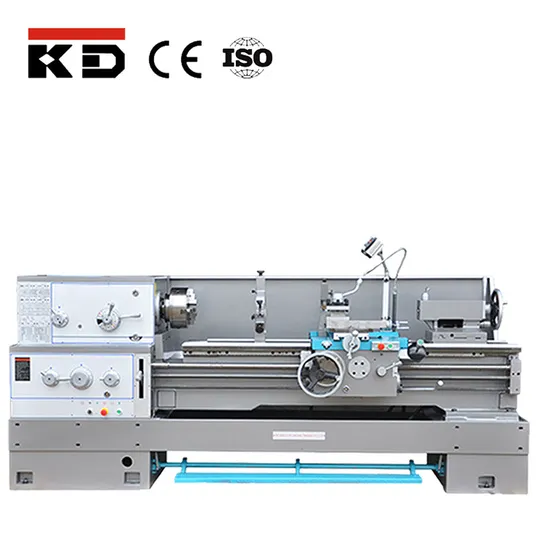

Lathe, Lathe Machine, Gap Bed Conventional Lathe C6140W
| US$3,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6140W
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
GS, ISO 9001
Condition
New
Spindle Bore
56mm
Spindle Nose
D6
Spindle Speed
9-1600
Bed Width
312mm
Main Motor
7.5kw
Steps of Speeds
24
Transport Package
Export Wooden Case
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/ Year
Product Description
Technical specification:
| MODELS | C6140W | |||
| CAPACITY | ||||
| Max.swing over bed | 420mm | |||
| Max.swing over carriage | 220mm | |||
| Max.length of workpiece | 1000/1500/2000mm | |||
| SPINDLE | ||||
| Spindle bore | 56mm | |||
| Taper bore of spindle | M.T.NO.6 | |||
| Steps of spindle speed | 24 | |||
| Range of spindle speed | 9~1600rpm | |||
| FEED | ||||
| Range of longitudinal feeds | 0.028~6.43 (0.0010″~0.2392″)mm | |||
| Range of cross feeds | 0.012~2.73(0.0004″~0.1016″)mm | |||
| RAPID TRAVEL | ||||
| Longitudinal | 4500mm/min | |||
| Cross | 1900mm/min | |||
| THREAD CUTTING RANGE/ NUMBER | ||||
| Metric pitch threads | 0.5~224mm/ 48 | |||
| Whit-worth threads | 72~1/8 TPI/ 48 | |||
| Module threads | 0.5~112M.P/ 42 | |||
| D.P.Threads | 56~1/4DP/ 45 | |||
| TAILSTOCK SLEEVE | ||||
| Taper bore | M.T.NO.5 | |||
| Max travel | 150mm | |||
| External diameter | 75mm | |||
| OTHERS | ||||
| Size of tool shank | 25×25mm | |||
| Max travel of cross slide | 320mm | |||
| Max travel of compound rest | 145mm | |||
| Main motor power | 7.5kw | |||
| Overall dimensions(L×W×H) | (2500/ 3000/ 3500)×1000×1285mm | |||
| Net weight | 2550/2750/2950kg | |||
The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
