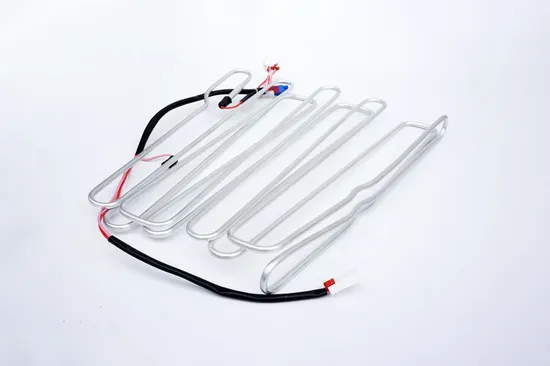

Aluminium Tube Heater for Refrigerator Evaporator

Product Description

Product name: Aluminum Tube Heater with UL TUV ROHS CE

Keywords	tube heater	Type	aluminum tube defrost heater
Application	Home Appliance	Heating Wire	PVC or Silicone Rubber
Lead Wire	PVC	Terminal	Customized
Tube	Aluminum Tube	Tube Diameter	4mm, 4.5mm, 5mm, 6.35mm or customize
Certification	CE, TUV, UL, ROHS	Warranty	1year

Applications Aluminum tube heating element is easier to use in narrow space, aluminum tube has good deformation capability, can be bent into complex shapes, is applicable to all kinds of space, in addition to tubes with heat conduction performance good, improve defrosting and heating effect. It is widely used to defrosting and heat preservation for refrigerator and freezer as well as other electrical equipment. It is with rapid speed on heat and with equality, security, through thermostat, power density, insulation material, temperature switch, heat scatter conditions can be required on temperature, mainly for frost elimination in refrigerator, frozen elimination and other power heat appliance.
Configuration Aluminum tube heating element uses aluminum pipe as heat carrier.
Put heater wire component in aluminum tube to form different shape components.
Diameter of aluminum tube: Ø4, Ø4.5, Ø5, Ø6.35
*If you have any special requirements, we could also customize for you.
*We'd like to offer samples for test. Technical data

Model	RLGV	RLGG
Electrical insulation	105ºCPVC	Silicon rubber
Dimension	Any dimension on request
Voltage	Any voltage on request
Output	Up to 15W/m	Up to 60W/m
Tolerances	≤±5% on resistance
Insulation resistance in normal temperature	≥100 MΩ
Dielectric strength in normal temperature	1800V 2S, No flashover and break down
Leakage current in working temperature	≤0.02 mA/m

Our Workshop
Packaging & Shipping Packing : customized.
Shipping: FOB SHANGHAI / NINGBO / OTHER PORTS
Our Services We gurantee our delivery time and responsible for the quality.
We'd like to offer samples for test.
Company Information
We Jiangyin PAWO Electronics Co.,ltd has been established for nearly 30 years. We specialize in producing various defrost heaters. And we are responsible for our products and customers.We have many certificates for our products, like CE, VDE, CSA, UL, CUL, TUV, RHOS, etc. We are the global market to provide heating element of high-quality, meet the various needs of different application fields.
FAQ
Q: Are you a trading company or manufacturer?
A: Yes, we are a manufacturer with factory.
Q: What certifications do you have for aluminum tube heaters?
A : We have CE, ROHS, UL, TUV certificates for aluminum tube heaters.
Q: Do you accept OEM service?
A: Yes, please offer your required specifications and drawing.
Q: What's your Delivery Time?
A: Normally within 15 days,please confirm with us before order!
Q: What's the Payment Terms?
A: Usually,30% as deposit,70% before shipment by T/T,L/C,D/A,D/P.
Q: How you pack products?
A: Plastic bag inside and exporting carton outside, or according to customers.
Q: What's your available port of Shippment?
A: Shanghai,Ningbo or other ports according to customers' requirement.
