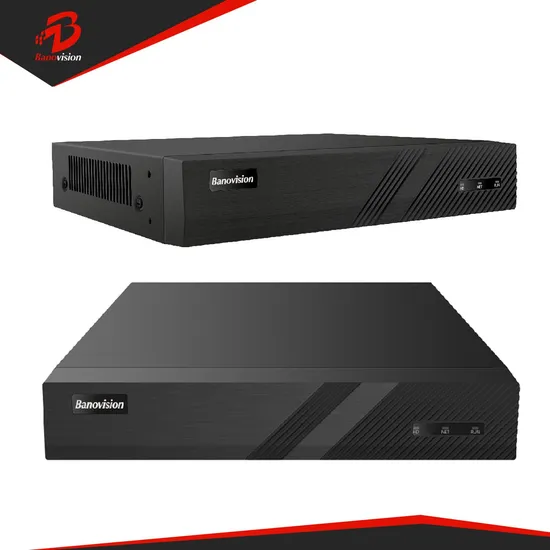

4MP /5MP CCTV 8CH Digital Video Recorder Security Xvr DVR
| US$20.00-45.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BA-1D3108-G3
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
Input: 8CH BNC/ Output: 1CH VGA, 1CH HDMI
Audio Input/Output
Input: 8CH RCA/ Output: 1CH RCA
Remote Control
With Remote Control
Special Point
Support Audio Over Coaxial Cable(Only for Tvi Came
Xvr
Support Tvi, Ahd, Cvi, CVBS, IP Cameras with Adapt
Recording Frame Rate
5MP/4MP/1080P
Harddisk
1 SATA(Max.up to 8tb for Each HDD)
Transport Package
Neutral Packing
Specification
Carton
Trademark
Banovision or OEM
Origin
China
HS Code
8521909090
Production Capacity
10000PCS/Month
Product Description
Features
| * Support H.265/H.264 video formats | ||
| * Support audio over coaxial cable(only for TVI cameras) | ||
| * Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access | ||
| * 8-channel BNC input | ||
| * Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 | ||
| * Long transmission distance over coaxial cable | ||
| * Support mainstream cameras of ONVIF and RTSP protocols |
Specification
| Model | BA-1D3108-G3 | |
| Video/Audio Input | ||
| Analog Video Input | 8-ch, BNC | |
| IP Video Input | 4-ch(only IP up to 8ch), each channel up to 4MP | |
| Supported Analog Camera Types | Support AHD input: | |
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support TVI input: | ||
| 5MP@12fps | ||
| 4MP@15fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVI input: | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | HD:2-ch | |
| SD:8-ch | ||
| Live view display | HDMI/VGA: 1/4/6/8/9/16 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 48Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows | |
| Firefox (version 52.0 and above) for Windows | ||
| Chrome(version 45 and above) for Windows | ||
| Edge(version 79 and above) for Windows | ||
| Recording Resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | |
| Recording Frame Rate | Main stream: | Sub stream: |
| 5MP Lite@12fps | D1@6fps | |
| 4MP Lite@15fps | D1@8fps | |
| 1080P@15fps | D1@12fps | |
| 720P@25fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps | |
| IP: 1 x 4MP@30, 2 x 1080P@30 | ||
| Hard Disk | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| (The maximum HDD capacity varies with environment temperature) | ||
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 2 x USB2.0 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 8 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |
