High Quality Disc Separator Juicer Centrifuge for Apple Juice Clarifying Centrifuge

Product Description

Product Description
The machine adopts automatic control and has the advantages of high efficiency, low material consumption, convenient operation, and economic maintenance cost. It adopts a small piston structure for gaining variable discharging capacity, and PLC controls both partly and fully discharging in order to get rid of sediment. The clear liquid is pumped out by a centripetal pump, the sludge is discharged automatically and partly. The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for a long time with low vibration, safety, and security. It has interlayer refrigeration. Yeast disc separator is a type of nozzle slag discharge separator. It is widely used in suspension's solid phase concentration and emulsion's light phase concentration. For example, kinds of yeast's separation and concentration, clarification of clay and pigment's dirty water, recycle of catalyst and high polymer powder. So it is one of the best equipment for yeast factories, alcohol factories, juice factories, brewery factories and environmental protection departments.

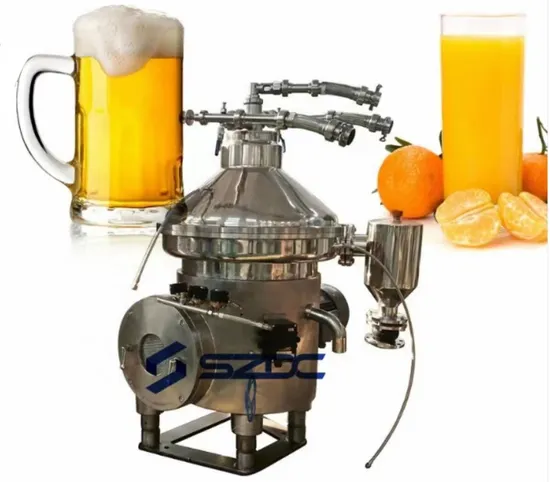

Product photos
Main structure Powerful Motor provide power through the thermal coupling to drive drum in high-speed rotating around the main axis. And the liquid material is carried by feeding pipe located in the upper center into the bottom of the drum, and then led in the porthole below the disc and driven to the drum wall. Under centrifugal force, solid- liquid-liquid do the below motion to complete thorough separation:solid phrase, which is heavier than liquid, would sink into the inner wall of the drum for sediment formation; light liquid flow in centripetal pump, and be discharged by liquid outlet; The heavy liquid tends to the drum wall along the cone inside the disc, and then flows upward through through the heavy liquid concentric pump to be discharge from the outlet.
Structure and principle The starch separators are disc separators with high speed and continuous nozzle discharge. Disc centrifuge/separator is used for purifying starch, preconcentration, protein separation and starch recovery, can also be used in food, medicine, dyeing, environmental protection departments of the liquid-solid two phase separation and clarification, concentration and recovery process, such as kaolin pulp recycling, waste water treatment, etc.
Nozzle separators are continuously operating disk centrifuges. They are built as centrifugal clarifiers and separators and are more solids-orientated than self-cleaning separators. When they are configured to function as clarifiers, they are called concentrators. They are used to thicken solids from suspensions.
Nozzle separators are absolute specialists in the processing of fermentation products in biotechnology, the pharmaceutical and food industries.
Specification

Model	DBY400
Capacity	100-3000L/H(depend on solid content)
Discharge time and Interval	Discharge time can be adjusted from 0.1~0.9 second, and discharge time interval can be adjusted from 1~240 minutes according to the raw material
Rotation speed(RPM)	7038
Max -force	11000g
Motor Power	7.5Kw
Turn on time	5~8minute
Stopped time (without brake)	≤40minute
Input pressure	0~0.1mpa
Output pressure	0~0.3mpa
Working water pressure	0.2mpa≤p≤0.45mpa
Noise	≤76dB
Max. vibrate	1.5mm/s
Weight	~1200kg
Dimension (mm)	950×800×1100

Main application For repeatedly tests, Disc Separator is mainly used for liquid-solid separation, among which, content of solid phase is within 1%-5% and diameter of solid particles is more than 0.5 microns.1. oil products: the separation and clarification for vegetable oil, animal oil, fish oil, crude oil, all kinds of fuel oil,ubricating oil,and clarification of dairy products;2. food: juice clarification, beer separation, broth separation and clarification for fermentation broth in fermented brewery;3. Extraction of vaccines, mycelium, glucose, insulin, antibiotics, vitamins;4.chemical industry: recovery for dry cleaning agent solvent, zinc plating solution, aluminum sulfate solution, tar water mixture, polyvinyl chloride, polypropylene, polyethylene, silver (film processing) and catalyst and magnetite .5.the separation and clarification of plant extract.
