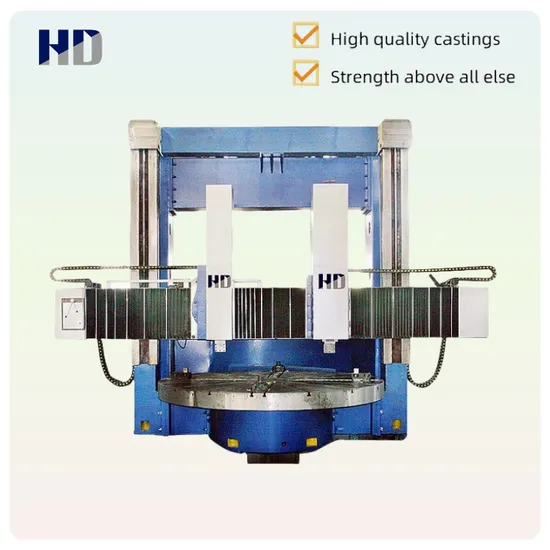

C5225 China Worktable Diameter 2250mm Double Column Manual Vertical Cast Iron Metal Heavy Cutting Machine

Product Description

Product Picture
Structure Features
Advanced modular design, universal products, mature technology, stable accuracy and reliable quality.
Great castings are made by our own foundry, and through heat aging treatment.
Hardened guideway by extra-frequency induction machine ( about HRC40). Sliding guideway combined with rollers on the cross rail.
PLC control made by OMRON Japan. Good layout and cabling in cabinet, special careful selected components for super reliability.
Separate hydraulic station, easy to set up, daily maintenance and repair.
DRO and scales are standard.
Grounded gears in the gearbox to ensure high precision, low noise and long lifetime.
Two kinds of table guideway is available, i.e. dynamic static pressure and pure static pressure.
Specification Parameter

Specification	Unit	C5225	C5232	C5235	C5240	C5250	C5263
Max. Cutting Diameter	mm	2500	3200	3500	4000	5000	6300
Max. Cutting Height	mm	1600/2000/2500	1600/2000/2500	1600/2000	1600/2000/2500	2000/2500/3150	3150/4000
Worktable Diameter	mm	2250	2830	2830	2830/3200/3600	4000/4500	4500/5000/5700
Max. Loading Weight	t	10/16/20	10/16/20	20	20/32/50	32/50	50/100
Worktable Max. Torque	kn. m	63	63	63	63	70	100
Worktable Speed Range	rpm	2-63	2-63	2-63	0.5-40	0.5-40	0.5-38
Worktable Step	steps	16	16	16	16	16	16
Right Tool Post Cutting Force	kn	35	35	35	35	35/50	50/80
Left Tool Post Cutting Force	kn	28	28	28	28	28/40	40/70
Tool Post Horizontal Travel	mm	1400	1700	1900	2150	2765	3450
Tool Post Vertical Travel	mm	1000/1250/1400	1000/1250	1000/1250	1000/1400	1250/1400/1600	1600/2000
Crossbeam Travel	mm	1250/1650/2150	1250/1650/2150	1250/1650	1250/1650/2150	1500/2000/2650	2650/3500
Main Motor	kw	AC55	AC55	AC55	AC55	AC55/75	AC75/90/110
Machine Weight	t	32/34/36	39/42	40/43	43/45/48	60/65/70	118/127/178
Overall Dimension(L*W*H)	mm	5180*4700*4800	6000*4860*5000	6400*5050*5200	6900*5200*5700	9200*5800*5800	11500*7500*9300

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
