Polyurethane Foaming Machine Manufacturer Furniture High Pressure Injecting Foam Machines

Product Description

Warm tip: we are specializes in undertaking various types of polyurethane foaming equipment and a variety of foaming complete production line customization and production, due to product specifications are different, prices are not the same, all products do not have inventory, if necessary, please contact us, the above prices for reference only.
Product Description
Technical Parameter:Injection output: 2-5000g/sMaterial tank volume: 30L-500LMixing ratio range: 100:40-200Mixing head: 2800-5000rpm, forced dynamic mixingCompressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)Temperature control system: heat:2×3KWInput power: three-phase 380V 50HZ Other power customizableRated power:8KW-12KWColor( customizable): White/Red/BlueWeight: 1000-2500KgDimension: 3200(L)*2000(W)*2900(H)mmEquipment Overview:PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.Application Cases :Pillow, chair, seat cushion,wheel, crown molding, wall panel, steering wheel, bumper, integral skin, fast rebound, slow rebound, toys, knee pad, shoulder pad, fitness equipment, thermal insulation material filling, bicycle cushion, car cushion, hard foaming, refrigerator material, medical appliance, insole etc.
Detailed Photos

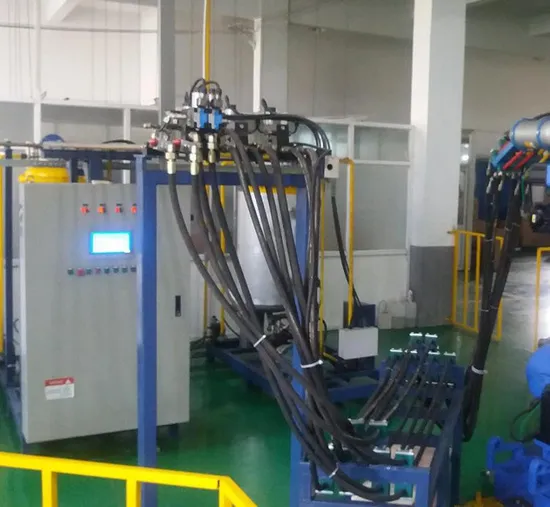

High pressure Polyurethane foam machine , three or four components
Our company all foaming production lines and foaming production equipment are custom products, all materials from the regular big-name companies, the perfect use of advanced control system, combined with the perfect design concept, all for the sake of customers.
pu foam machine

item	value
Place of Origin	China
Brand Name	WUXIJINGJIEKJ
Processing Type	Foaming Machine
Product Type	Foam Net
Machine Type	dosing machine
Power (kW)	33kW
Weight (KG)	1890KG
injection ratio:	1:3~3:1
Applicable Industries	Machinery Repair Shops, Construction works , OTHER, automotive

If you want automatic PU Foam production line, need robot to replace worker, here we have it for you :
Our robot pouring PU/polyurethane foam production line is made up of :
1. one robot
2. one PU foam machine( high pressure foam machine, three or four components)
3. one turntable prouction line , with Multi - station mould base( usually 16-32pc mould base ), but can be more if nessary
4. one electric control box

PU/Polyurethane Foam Production Line Photos
Robot pouring foam, no need worker , precise pouring , high efficient!
PU/Polyurethane foam turntable , diameter 8-12m, with 20-40 stations

Company Profile
Our company information
We are a China automatic equipments and production line make company. Our main production line are : PU foam moulding automatic production line ; PU foam machine; gravity casting machine and automatic gravity casting production line , all the production line with robot arm to replace labour, it can come ture full automatic production. Our equipments and production line mainly use in these industrtrial fields: all polyurethane / PU products´s production(such as car seat foam, electrombile seat foam , thermal insulation material and so on); Aluminum or aluminum alloy or metal products. All our equipments use PLC program and communication, and can come true online tracking . welcome to contact us for more information.
Certifications

WuXiJingJieRobotTechnologyCo.,Ltd
Price :
All products is non-standard products , final price according to customer ´s actual need to quote

Our company characteristics
1. all products accept customized, different specifications price different
2. according to customer´s actual needs and the company ´s characteristics to provide appropriate programme
3. product realization fully automated combined with robot operation , save human cost and greatly improve the production efficiency
4. products long-term tracking service
5.Delivery time: 35-65 working days after received customer´s 50% down payment!
6. Warranty period: one year , Life Time Guarrantee

Packaging & Shipping
High temperature sterilized fully sealed wooden box packaging
Port: Shanghai Port, Qingdao Port, Guangzhou Port
After Sales Service
Our Services
1)After-sale Service:
Our engineers is avilable to oversea for coordinate installation, commissioning and training.
Cost for flight and suitable accommodation plus USD 120 per day each person will be charged additionally.
2)Lifetime maintenance free of charge.
3)Free training course at our plant or customer's plant.
4)24 hours on line service each day; free technical support.
5)Machine has been adjusted and test before delivery.
6)Free to design the Layout of customers' plant by our technician team.

FAQ
1.Q:Are you manufacturer ?
A:Yes,We are manufacturer
2.Q: Which software do you use?
A: Dear sir,we use the CAD software
3.Q: Which way do you repair your machine
A:Our engineers is avilable to repair oversea
4.Q:Where can I find your prodution line vidio?
A :Dear sir, we can send you directly by email or whatsapp/wechat
5.Q: Where is your company?
A: It is in Wuxi City, near to Shanghai, just need half hour by high-railway.
6. Q: Does your city have airport?
A: Yes, we have, it is SUNAN SHUO FANG AIRPORT.
