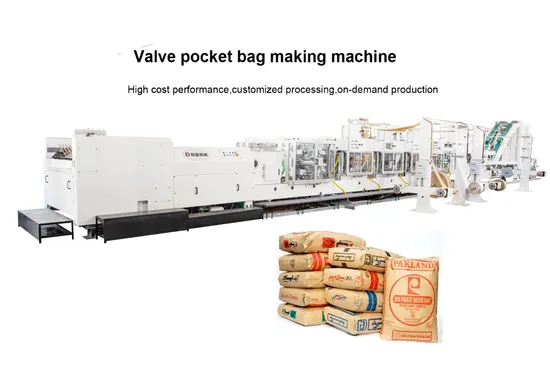

Cement and Dry Building Mixes Materails Paper Sack Paper Bag Manufacturing Machine
| US$90,000.00-3,150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YD-5860, YD-5875, YD-2018-18, YD-2818, YD-2825
Product Line
One
Lines
1
Voltage
380V
Seals Mode
Center Seals
Speed
High
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Multi Wall
Machine Type
Paper Bag Machine
Computerized
Computerized
Type
Paper Bag Making Machine
Material
Metal
Energy Consumption
Low Energy Consumption
Transport Package
Wooden Box
Specification
40T
Trademark
YIDENG
Origin
Suzhou, China
HS Code
8441200000
Production Capacity
20 Pieces/Year
Packaging & Delivery
Package Size
3600.00cm * 500.00cm * 3100.00cm
Package Gross Weight
50000.000kg
Product Description
Basic Information| YD- 5860 Tuber: |
| Speed:450pieces /min |
| Bag length:450mm~1250mm |
| Bag width:300mm~600mm |
| YD- 5875 Tuber: |
| Speed:400pieces /min |
| Bag length:410mm~1650mm |
| Bag width:300mm~750mm |
| YD-2018-18 Bottomer: |
| Speed:200pieces /min |
| Bottom width:90mm~170mm |
| Bag length:260mm~1000mm |
| Bag width:300mm~600mm |
| YD-2818 Bottomer: |
| Speed:300pieces /min |
| Bottom width:90mm~180mm |
| Bag length:190mm~1000mm |
| Bag width:300mm~600mm |
| YD-2825 Bottomer: |
| Speed:300pieces /min |
| Bottom width:90mm~250mm |
| Bag length:190mm~1360mm |
| Bag width:300mm~720mm |
YIDENG manufacturing the whole production line, Tuber machine, Conveyor Belt, Bottomer machine, and Palletizer(still in test).
The machine could produce many different kinds of paper bags, and paper bag with one PP/PE film inside. Like Cement paper bag, Multiwall paper Sack, Dry Building Mixes material sack, Sack for Motar, Sand, Brick, Tile adhesive, Gypsum, Grouts and so on, and small part of Food paper Bag.
FEATURES AT A GLANCE
Product Process
Tuber Machine
1. Station of putting roll paper
2.Station of putting PP/PE film
3. Corrective action part
4. Positioning and punching part
5.Tension and stretch part
6. Stepped cutting part
7. Transverse gluing part
8. Longitudinal gluing part
9. Forming part
10.Flush cutting traction and tearing part
11. Finished bag part (Counting and packet)
12.Electric cabinet control box
Length×width×Height:36M×3.8M×3.1M
Total power:70KW
Weight:45T
Speed:450 pcs per/min
Bottomer Machine
